SW41AB-V2
4-Way 4K HDMI 2.0 HDCP 2.2 Switch

Description

Our SW41AB-V2 is a 4-Way HDMI switch with integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Box Contents

1x SW41AB-V2
1x SW41-REMOTE
1x 5V / 2A DC power supply
1x User manual



Key Features

  • Features 4x HDMI inputs which can be switched to single HDMI output

  • Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)

  • HDCP 2.2 compliant

  • Supports 3D signal display

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently

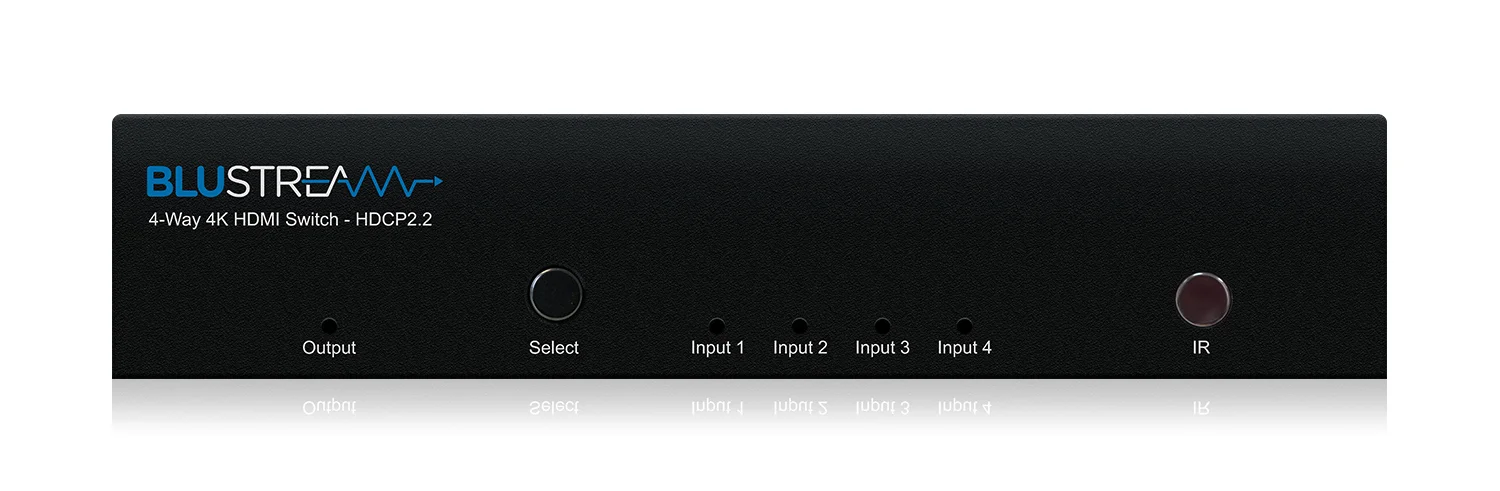

  • Control via front panel, RS-232 and IR

  • Advanced EDID management

Specifications

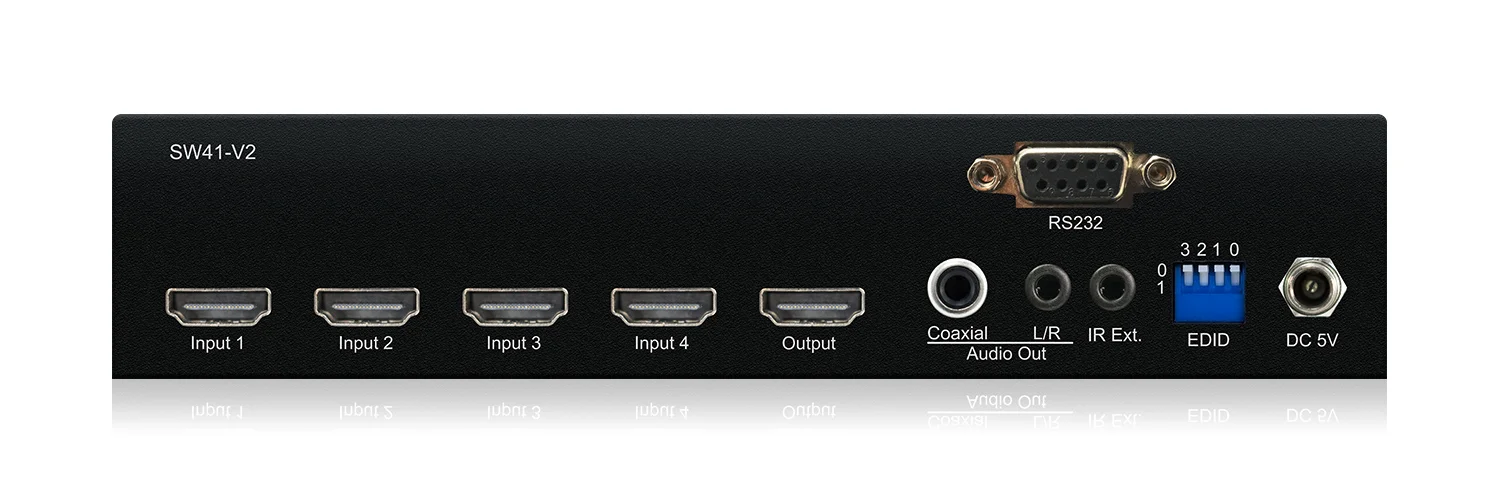

  • Video Input Connectors: 4x HDMI Type A

  • Video Output Connectors: 1x HDMI Type A

  • Audio Output Connectors:1x RCA (SPDIF) & 1x Analogue audio L/R (3.5mm stereo Jack)

  • IR Input Ports: 1x 3.5mm stereo Jack

  • RS-232 serial port: 1x DB-9, female

  • Casing Dimensions (W x H x D): 196mm x 41mm x 94mm

  • Dimensions including connections (W x H x D): 196mm x 41mm x 104mm

  • Shipping Weight: 0.9kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 5V/2A DC
