PRO48HBT70CS
Custom Pro 4x8 HDBaseT™ CSC Matrix (4K 60Hz 4:4:4 up to 40m) - Supports HDR, IP Control, PoE, 2-Way IR and Audio Breakout



Description

Our Custom Pro 4x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market. The PRO48HBT70CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoH (PoE) up to lengths of 70m over a single CAT cable (4K with HDR up to 40m), with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.

The Matrix also provides advanced features including audio breakout and a web browser interface module for control and configuration of the matrix.


Downloads

Key Features

  • HDBaseT™ technology offering distribution of video and audio over a single CAT cable

  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

  • Features 4 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs

  • Supports 4K 60Hz 4:4:4 UHD video up to 40m

  • Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:

    - 1080p 60Hz (for screens that do not support 4K)

    - 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

  • Supports 4K HDR

  • Extends HDMI 1080p video up to 70m

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR

  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions

  • Analogue audio input can be embedded onto any HDMI input

  • Web interface module for control and configuration of Matrix

  • Supports bi-directional IR

  • Supplied with Blustream IR receivers and emitters

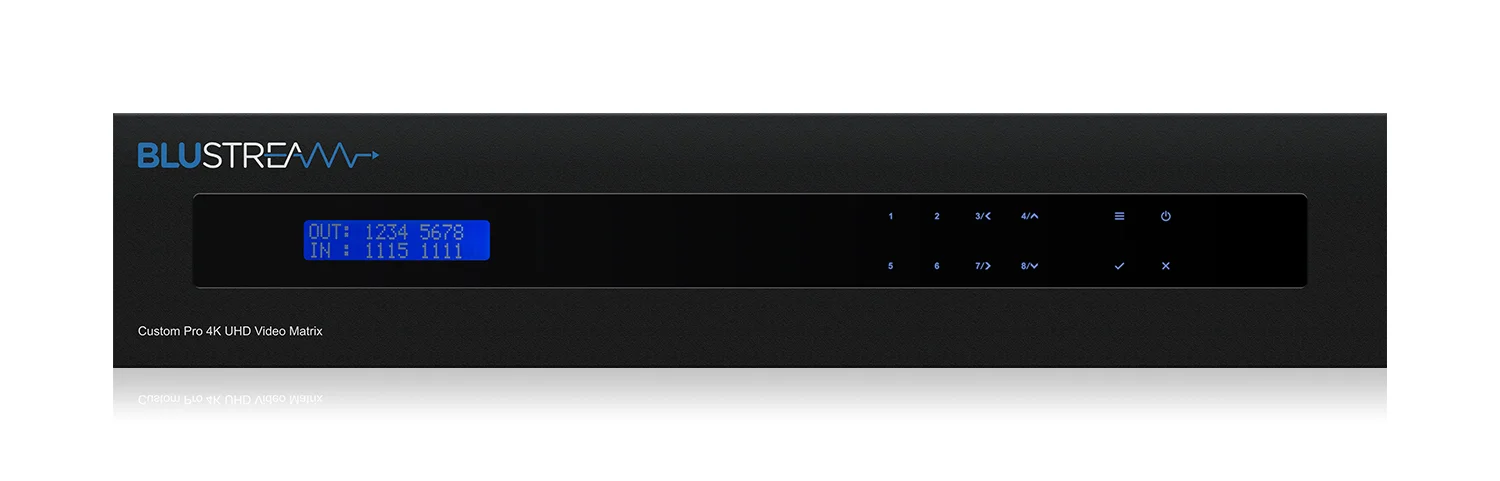

  • Control via front panel, IR, RS-232 and TCP/IP

  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers

  • 3rd Party drivers available for all major home control brands

  • 2U Design for 19" rack mount integration - Mounting kit included

  • Advanced EDID management

  • HDCP 2.2 compliant

  • To be used with the HEX70CS-RX receivers

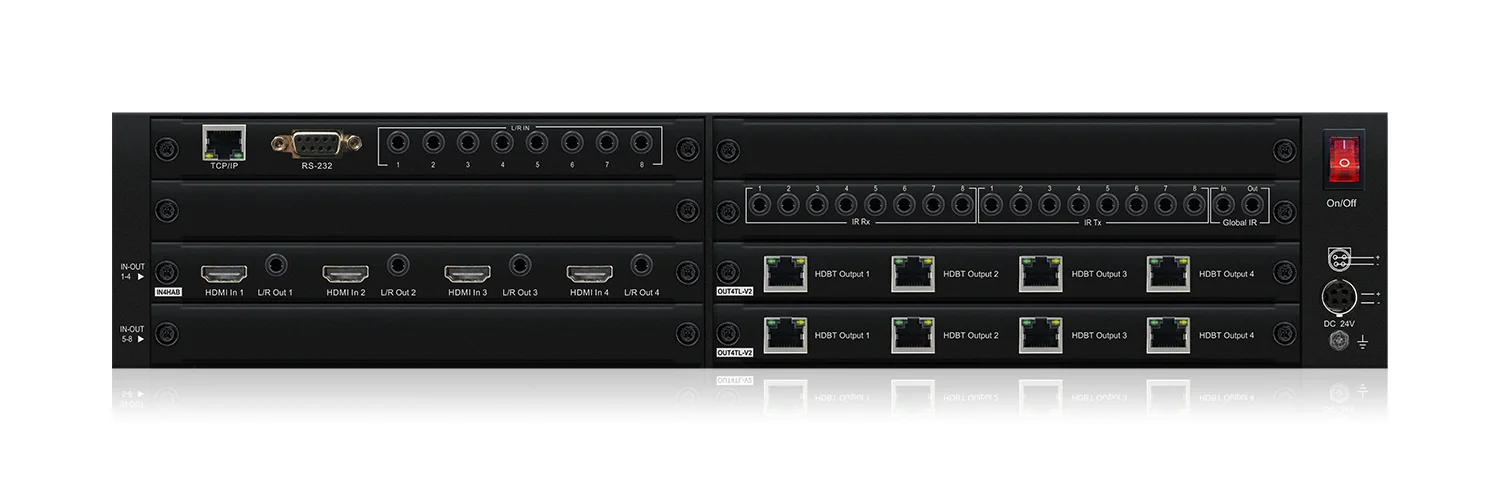

Specifications

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female

  • Video Output Connectors: 8 x HDBaseT™ RJ45 connector

  • Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)

  • TCP/IP Control: RJ45, female

  • Ethernet/Network: RJ45, female

  • IR Input ports: 9 x 3.5mm stereo jack

  • RS-232 serial port: DB-9, female

  • Rack-Mountable: 2U rack height, rack ears included

  • Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet

  • Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet

  • Shipping Weight: 5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 24V/8A DC
