PLA66ARC
6x6 HDBaseT™ AV Matrix - 100m (4K up to 70m), Bi-directional IR & RS-232, PoH (PoE), Simultaneous HDBaseT™ / HDMI Outputs, Audio Breakout, ARC Enabled

Description

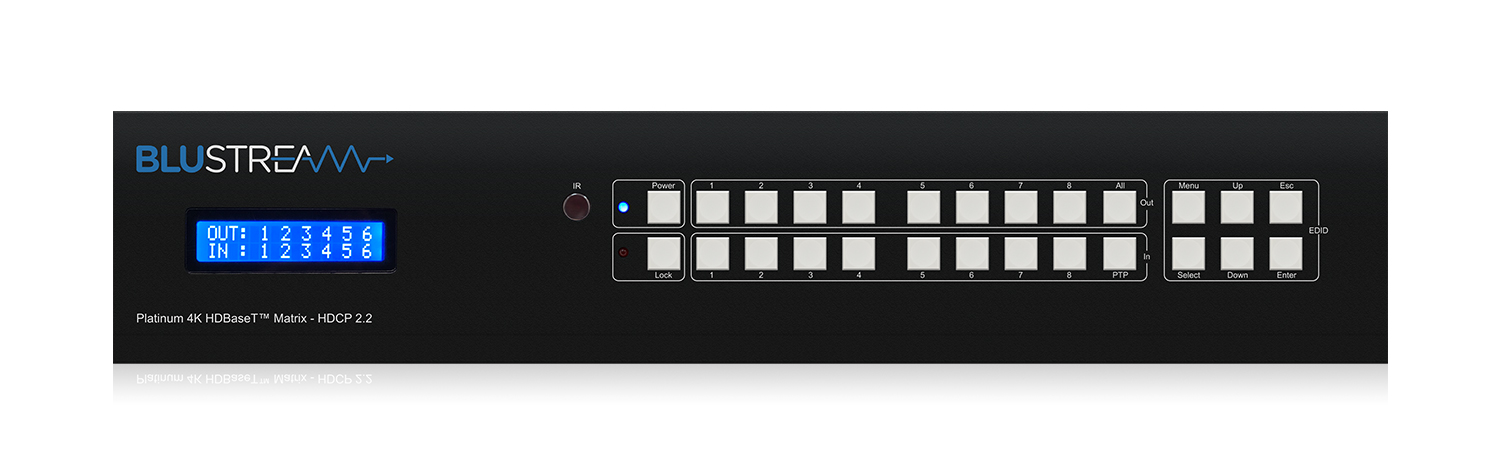

Our Platinum 6x6 HDBaseT™ Matrix delivers a range of industry leading features. The PLA66ARC is a 4K 6x6 matrix,
transmitting HDMI, Bi-directional IR, RS-232 and PoH (Power over HDBaseT™) up to lengths of 100m over a single CAT cable. The matrix also provides advanced features including independent audio matrix, simultaneous HDBaseT™ & HDMI outputs, single HDBaseT™ input, HDMI audio breakout and audio de-embedding. The PLA66ARC matrix is a HDBaseT™ class A product and includes additional features such as ARC (audio return channel) and LAN serving via HDBaseT™ over single CAT cable.

The matrix can be fully controlled via TCP/IP, RS-232, IR or using the Blustream Software, allowing the user to define audio routing and conversion, designate EDID presets and lip sync control.

Box Contents

1 x PLA66ARC Matrix
1 x IR Remote Control
1 x Rack Mounting Kit
7 x IR Emitters
7 x IR Receivers
7 x IR Control Cable - 3.5mm-3.5mm Cable
2 x Serial Cable - 9-pin RS232 to 3-pin pPhoenix Connector
1 x User Manual
Power Cable/s



Key Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

  • Features 6 x HDMI inputs which can be independently routed to 6x HDBaseT™ + HDMI outputs

  • Simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone

  • Input 1 supports dual HDBaseT™ & HDMI to enable integration of remote HDMI sources up to 100m distance (4K up to 70m)

  • Up to 18x12 Audio Matrix independently controllable from video media

  • 6x independent analogue L/R audio inputs which can be routed to audio outputs or embedded onto HDBaseT™ / HDMI outputs

  • HDMI audio breakout to independant Coaxial digital and analogue L/R audio outputs

  • Supports ARC (Audio Return Channel) via HDMI and Optical digital inputs from compatible HEX100ARC-RX receivers

  • Extends HDMI up to distances of 100m over single CAT cable

  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports 3D signal display

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Integrated Ethernet switch (LAN serving) when used with Blustream HEX100ARC-RX receiver. HEX100ARC-RX features a 3-port Ethernet switch

  • Supports bi-directional RS-232 from all input and output locations (with compatible transmitters & receivers)

  • Supports bi-directional IR from all input and output locations

  • Supplied with Blustream IR receivers, emitters and RS-232 control cable

  • Control of Matrix via front panel, IR, RS-232 and TCP/IP

  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ transmitters & receivers

  • 3rd Party drivers available for all major home control brands

  • Advanced EDID management

  • HDCP1.4 compliant

  • 2U Design for 19" rack mount integration - rack mounting kit included

  • Compatible with (receivers):

    • HEX100ARC-RX (for full ARC functionality, 100m at 1080p, 70m at 4K)

    • HEX100HDVGA-RX (for audio breakout at receiver, 100m at 1080p, 70m at 4K)

    • HEX70ED-RX (for RS232 and IR only, 70m at 1080p, 40m at 4K)

    • HEX70B-RX (for IR control only, 70m at 1080p, 40m at 4K)

    • RX70AMP (for audio within zone, 70m at 1080p, 40m at 4K)

  • Compatible with (transmitters) - input 1 only:

    • HEX100ARC-TX (for Ethernet serving, 100m at 1080p, 70m at 4K)

    • HEX100HDVGA-TX (for HDMI or VGA input, 100m at 1080p, 70m at 4K)

    • HEX70ED-TX (for RS232 and IR only, 70m at 1080p, 40m at 4K)

    • HEX70B-TX (for IR control only, 70m at 1080p, 40m at 4K)

Specifications

  • Video Input Connectors: 6x HDMI Type A, 19-pin, female, locking, 1x HDBaseT™ RJ45 connector

  • Video Output Connectors: 6x HDMI Type A, 19-pin, female, locking, 6x HDBaseT™ RJ45 connector

  • Audio Input Connectors: 6x 3.5mm stereo jack (L/R)

  • Audio Output Connectors: 6x RCA (SPDIF), 6x 3.5mm stereo jack (L/R)

  • RS-232 serial ports: 7x 3-Pin Phoenix connector

  • TCP/IP Control: RJ45, female

  • Ethernet / Network: RJ45, female

  • IR Input ports: 7x 3.5mm stereo jack

  • IR Output ports: 7x 3.5mm mono jack

  • Rack-Mountable: 2U rack height, rack ears included

  • Casing Dimensions (W x H x D): 440mm x 87mm x 361m, without feet

  • Dimensions Including Connections (W x H x D): 440mm x 87mm x 369mm, without feet

  • Shipping Weight: 8.8kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

  • Power Supply: internal 100-240v DC
