8x8 4K HDMI Matrix



Our MX88ED 4K UHD HDMI matrix independently distributes eight HDMI sources to eight displays. This enables all sources to be viewed seamlessly as required within a matrix configuration. The unit transmits all HDMI resolutions up to and including 4K UHD and features EDID management.

Box Contents

1 x MX88ED Matrix
1 x 12V/5A DC Power Supply
1 x IR Remote Control
1 x IR Receiver
1 x Rack Mounting Kit
1 x User Manual



Key Features

  • Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs

  • Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports 3D signal display

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

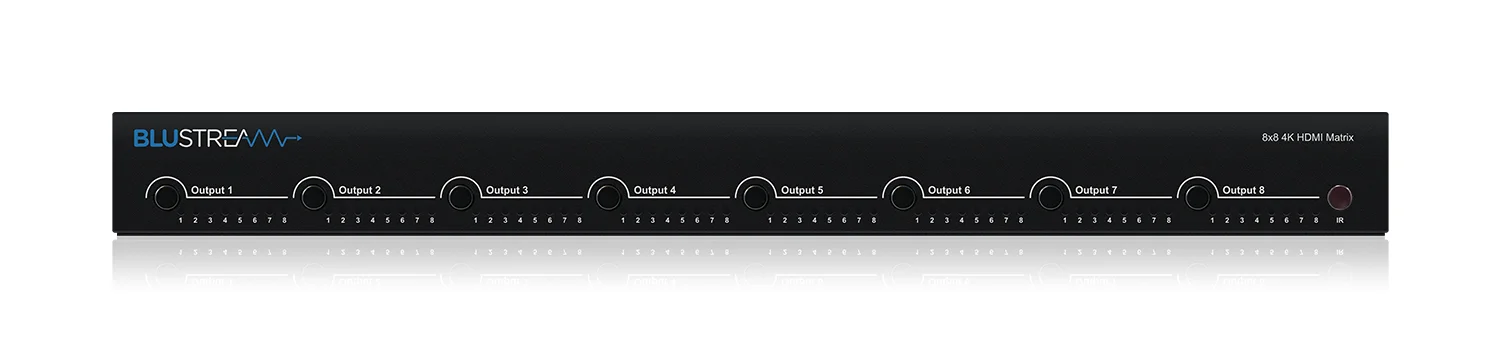

  • Control via front panel, IR, RS-232 and TCP/IP

  • 3rd Party drivers available for all major home control brands

  • Advanced EDID management

  • HDCP 1.4 compliant

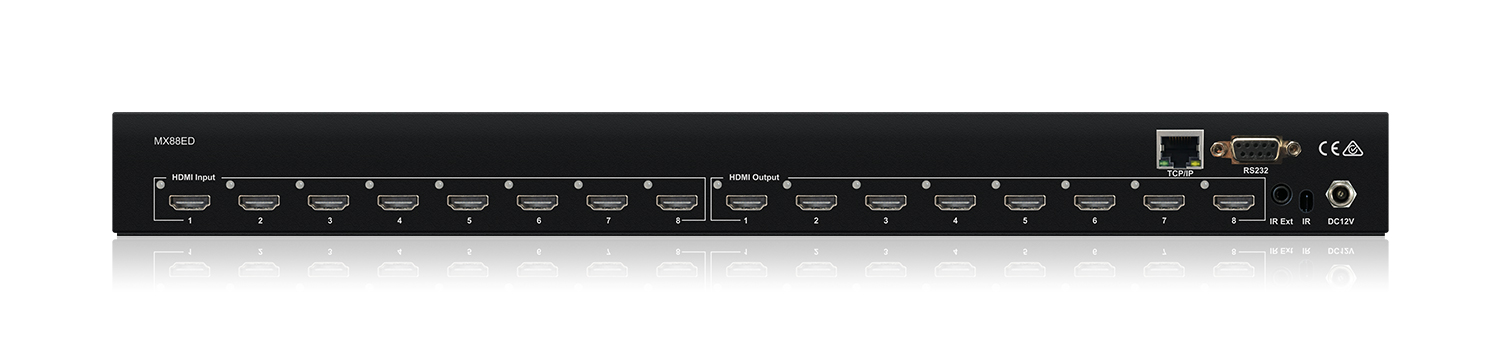

  • Video Input Connectors: 8 x HDMI Type A, 19-pin, female, locking

  • Video Output Connectors: 8 x HDMI Type A, 19-pin, female, locking

  • RS-232 Serial Port: DB-9, female

  • TCP/IP Control: RJ-45, female

  • IR Input Ports: 1 x 3.5mm stereo jack

  • Rack-Mountable: 1U rack height, rack ears included

  • Product Dimensions (W x D x H): 440 x 90 x 55mm (with feet & connections)

  • Product Dimensions (W x D x H): 440 x 85 x 45mm (without feet & connections)

  • Product Weight: 2.4kg (excluding accessories)

  • Carton/Box Dimensions (WxDxH): 590 x 300 x 105mm

  • Shipping Weight: 4kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 12V/5A DC, locking type connector
