MX44VW
4x4 4K Seamless Switching HDMI / VGA Matrix, with Video Wall and Multi-Viewer feature, IR Routing, App, RS-232, IR & TCP/IP Control



Description

Our MX44VW 4K HDMI / VGA matrix is a multi-purpose high-speed video processing system. The MX44VW can be configured for 3 different output modes.

The MX44VW can perform as a 4x4 seamless matrix switcher, as a 2x2, 4x1 or 1x4 video wall solution, and as a quad multi-view presentation system. Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio with control of the switcher via the front-panel push buttons, Blustream Matrix App, IR remote control, RS-232 interface and TCP/IP.

Box Contents

1 x MX44VW Matrix
1 x 12V/3A DC Power Supply
1 x IR Remote Control
4 x IR Emitters
5 x IR Receivers
1 x Rack Mounting Kit
1 x User Manual


Downloads

Key Features

  • Features 3 operational modes:

    - 4x4 Seamless Switching Matrix (HDMI or VGA inputs)

    - Video Wall (2x2, 4x1 or 1x4 configuration)

    - Multi-Viewer mode with preset layouts

  • Features 4x video inputs that can be configured as HDMI video or VGA video with associated L/R analogue audio instantaneous seamless video switching (Matrix and Video Wall modes)

  • Video inputs support industry standard video resolutions including VGA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4)

  • HDMI output resolution fixed to 1080p @60Hz

  • Supports HDMI 2ch PCM audio only

  • Discreet IR routing

  • Supplied with Blustream IR receivers and emitters

  • Control via front panel, IR, RS-232, TCP/IP and the Blustream Matrix App

  • 3rd party control drivers available for all major home control brands

  • Advanced EDID management

  • HDCP 1.4 compliant

Specifications

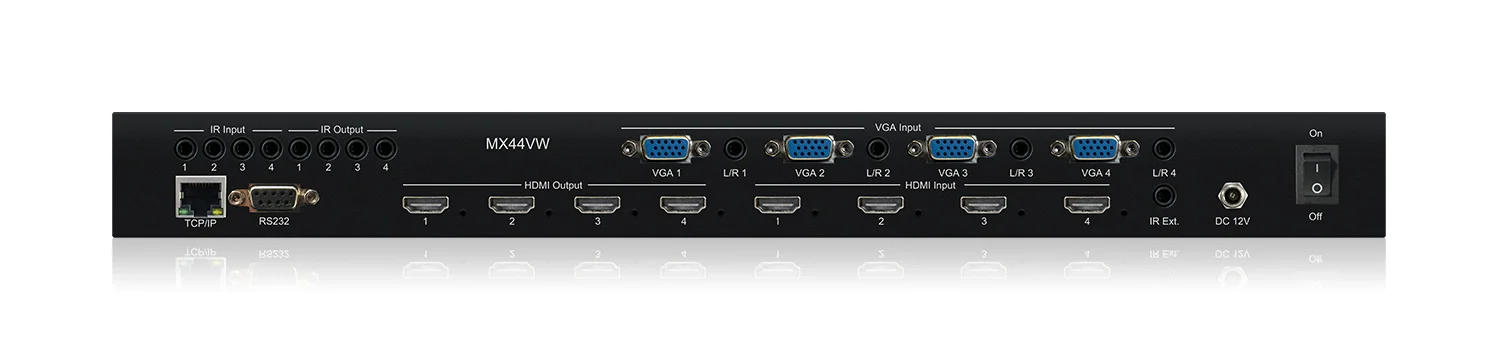

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female, locking & 4 x VGA

  • Video Output Connectors: 4 x HDMI Type A, 19-pin, female, locking

  • Audio Input Connectors: 4 x Analogue audio 3.5mm stereo Jack

  • RS-232 serial port: DB-9, female

  • TCP/IP Control: RJ45, female

  • IR Input ports: 5 x 3.5mm stereo jack

  • IR Output ports: 4 x 3.5mm mono jack

  • Mounting kit included

  • Casing Dimensions (W x H x D): 440mm x 45mm x 180mm

  • Dimensions including connections (W x H x D): 440mm x 44mm x 187mm

  • Shipping Weight: 4.0kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 12V/3A DC
