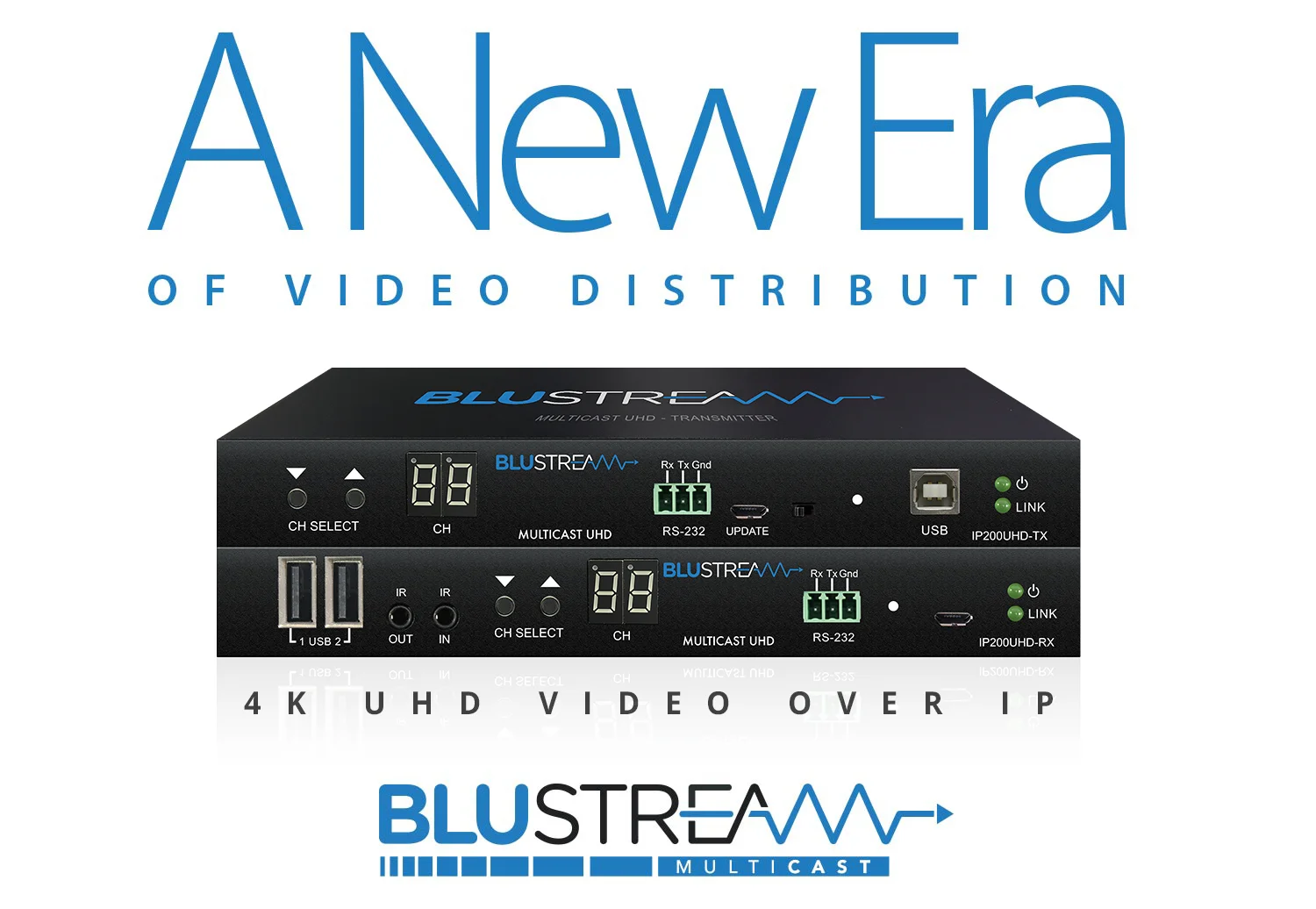

Multicast UHD from Blustream delivers virtually latency free distribution of HDMI video over a 1GB Network switch. Using lossless compression technology, Multicast delivers HDMI, IR, RS-232 and USB/KVM* up to lengths of 100m over a single CAT cable. The beauty of Multicast is its flexibility and ease of installation. The industry has been requesting a video over IP solution that can be installed in minutes and without the need for any networking qualifications. Multicast UHD has been developed in line with these objectives and is now ready to deliver a new era in advanced video distribution.
Key Features of Multicast:
Easy to set up and install using our custom software via a PC, or with a web-GUI when using the ACM200
Introducing ‘Quick set-up’ which allows basic product installation and configuration in just seconds without the need of a computer or configuration software
No need for knowledge of networks or creating VLAN’s
Product supports 4K UHD input, including HDR support (@24fps max) up to lengths of 100m
Virtually latency free (1 frame) delivering flawless image quality
Built-in video scaler in the Multicast receiver allows each display to playback its optimal quality video
Infinitely scalable to incorporate any number of transmitters and receivers
Easy integration with 3rd party control systems including Control 4, Crestron, RTI, Push, ELAN, URC, Savant & DemoPad
Receivers include a loop-out RJ45 port to daisy chain receivers and extend distances
Advanced signal management for independent routing of Video, Audio, IR, RS-232, and USB/KVM*
PoE from a compatible PoE network switch to power all Multicast components within the system
System can be configured with virtually any Layer 3 Gigabit managed network switch
*USB / KVM on IP200UHD units only
IP Multicast UHD Video Transmitter over 1GB Network , Bi-directional IR, RS-232 & USB / KVM, PoE, Analogue Audio Embedding, Analogue Audio Breakout and HDCP 2.2
The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture. The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.
IP Multicast UHD Video Receiver over 1GB Network, Built-in Video Scaler, Video-wall Mode, Bi-directional IR, RS-232 & USB / KVM, PoE, Analogue Audio Breakout and HDCP 2.2
The IP200UHD-RX is an industry leading 4K HDCP 2.2 HDMI video scaling receiver that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture. The IP200UHD-RX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.
The new ACM200 Advanced Control Module allows for advanced third party control of the Multicast system using TCP/IP, RS-232 and IR. The ACM200 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB/KVM, Audio and Video. Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.
Key Features of the ACM200:
Web interface module for configuration and control of the Blustream Multicast system
Intuitive 'Drag & Drop' source selection with video preview feature for active monitoring of system status
Advanced signal management for independent routing of Video, Audio, IR, RS-232, and USB/KVM
Auto system configuration
2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independent IP address per LAN connection
- Allows simplified TCP / IP control of Multicast system
Multicast Advanced Control Module for TCP/IP, RS-232 and IR Control of Blustream Multicast Systems with Web GUI
Our UHD Multicast distribution platform allows distribution of HDMI video over a 1GB Network switch. The ACM200 Control Module allows advanced third party control of the Multicast system using TCP / IP, RS-232 and IR.
In just 4 hours we can provide all of the necessary hands-on introductions to the hardware and software, giving you the confidence required to immediately start specifying and installing Multicast.
Introduction to Multicast Technology
Network Switch Configuration
Guide to the ACM200 for configuration and control of Multicast
Programming Transmitters and Receivers (IP200UHD)
Key hardware and software features
Integrating with 3rd Party Control Systems (via the ACM200)
Email: firstname.lastname@example.org or call +44 (0) 115 824 7000 to book your place.
