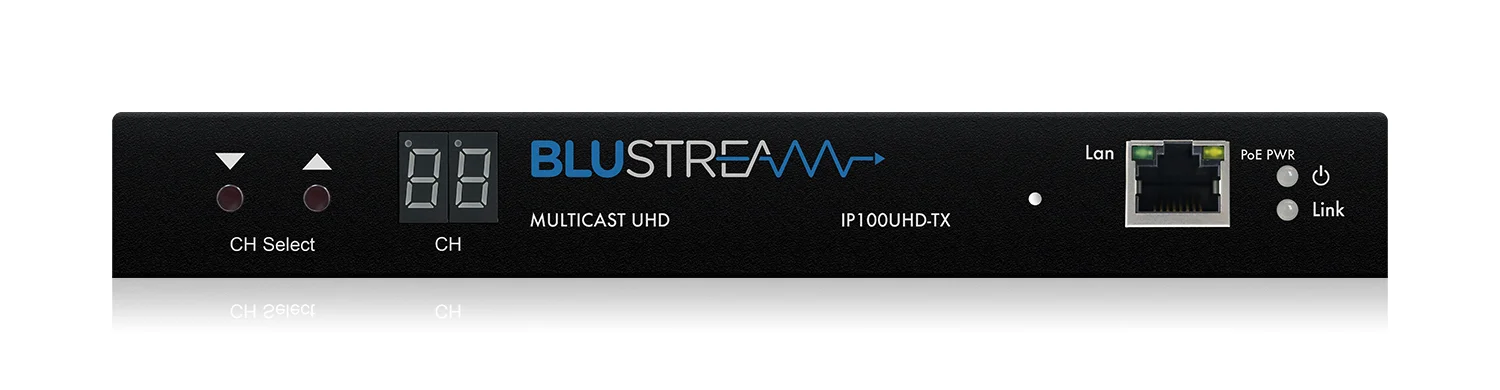

IP Multicast UHD Video Transmitter over 1GB Network - Up to 100m, Bi-directional IR & RS-232, PoE and Analogue Line Level Input



Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1GB Network switch. The IP100UHD-TX is an industry leading 4K HDMI IP transmitter that using lossless compression technology, delivers HDMI, Bi-directional IR and RS-232 up to lengths of 100m over a single CAT cable. The IP100UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE.

Box Contents

1 x IP100UHD-TX transmitter
1 x IRR IR Receiver
1 x IRE IR Transmitter
1 x Serial 3-pin Phoenix Connector
1 x Mounting Kit
* Multicast IR remote sold separately (code: IP-REM)



     Key Features

  • Advanced UHD video over 1GB Network

  • Extends HDMI up to a distance of 100m over single CAT cable

  • Features 4 operational modes:

    - Matrix distribution (requires 1GB network switch)

    - Video wall (requires 1GB network switch)

    - One-to-one HDMI extender (no network switch required)

    - One-to-many HDMI extender (no network switch required)

  • Supports input 4K UHD video up to 100m:

    - 3840 x 2160 @30Hz 4:4:4

    - 3840 x 2160 @60Hz 4:2:0

    - 4096 x 2160 @24Hz 4:4:4

  • Supports all industry standard video resolutions including VGA to WUXGA

  • Supports 3D signal display

  • Supports HDR (High Dynamic Range) at 24fps max

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Analogue L/R audio input

  • Bi-directional RS-232 pass through

  • Bi-directional IR from all input and output locations (when using fixed signal routing feature on AI2.0 Software)

  • PoE (Power over Ethernet) to power Blustream products from compatible PoE switch

  • Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately

  • HDCP 2.2 compliant

  • Advanced EDID management

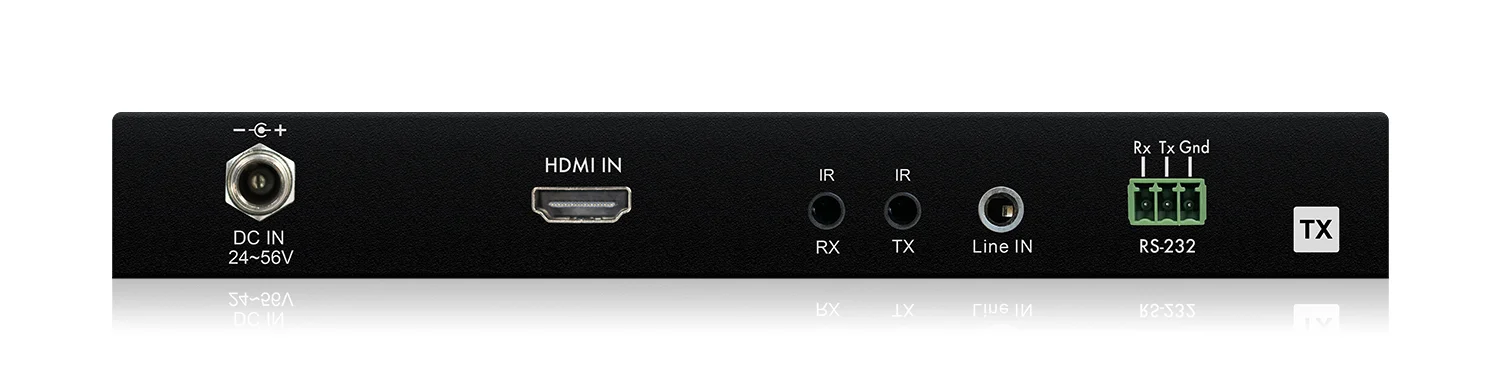

  • Video input: 1 x HDMI Type A, female

  • Video output: 1 x LAN RJ45 connector

  • Audio input:1 x 3.5mm L/R Analogue audio

  • Ethernet port: 1 x LAN RJ45 connector

  • RS-232 serial port: 1 x 3-Pin Phoenix connector

  • IR input: 1 x 3.5mm stereo jack

  • IR output: 1 x 3.5mm mono jack

  • Software requirements: for IP100UHD units purchased prior to end October 2018, please use the IP100UHD PC Software (download adjacent). For all units purchased November 2018 onwards, please use AI2.0 (Advanced Integration Software).

  • Mounting kit included

  • Dimensions (W x D x H ): 190mm x 108mm x 25mm

  • Shipping Weight (Kit): 0.75kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
