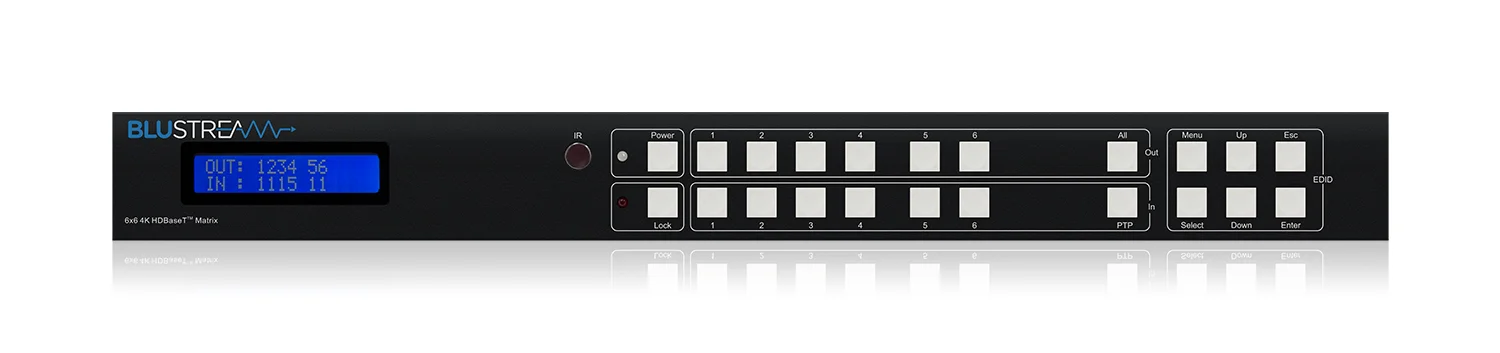

HMXL66
6x6 HDBaseT™ Matrix - 6 x 70m (4K up to 40m) HDBaseT™ Outputs & 2 HDMI Outputs, Bi-directional IR, PoH (PoE), RS-232 & IP Control



Description

Our Essential 6x6 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The HMXL66 is a 4K 6x6 matrix with a combination of 6 x HDBaseT™ and 2 x HDMI outputs (Outputs 1 and 2 feature simultaneous HDBaseT™ / HDMI outputs). This allows for cost-effective integration of local displays or AV receivers within an installation.

The matrix delivers 1080p HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable (4K up to 40m). The HMXL66 Matrix can be seamlessly integrated into 3rd party control systems using RS-232, TCP/IP and InfraRed and features a web browser interface module for control and configuration of the matrix.

Box Contents

1 x HMXL66
1 x Rack Mounting Kit
1 x 24V/6.25A Power Supply
1 x 12V/5A Power Supply
1 x Remote Control
1 x IR Receiver
6 x IRCAB Control Cables - 3.5mm-3.5mm Cable
6 x IR Emitters
1 x Quick Reference Guide


Downloads

Key Features

  • Features 6 x HDMI inputs which can be independently routed to 6 x HDBaseT™ outputs

  • Outputs 1 and 2 feature simultaneous HDMI and HDBaseT™ outputs

  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports 3D signal display

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Supports bi-directional IR from all input and HDBaseT output locations*

  • Control via front panel, IR, RS-232 and TCP/IP

  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers

  • 3rd Party drivers available for all major home control brands

  • Advanced EDID management

  • HDCP 1.4 compliant

  • Web interface module for control and configuration of the Matrix

  • IOS and Android control and configuration apps available

  • 1U Design for 19" rack mount integration - rack mounting kit included

  • Compatible with (receivers):

    - HEX70B-RX (IR control only, 70m at 1080p, 40m at 4K) - recommended receiver

    - RX70AMP (for audio within zone, 70m at 1080p, 40m at 4K)

    *Other Blustream HDBaseT Receivers can be used but their advanced features are not supported by the HMXL66 Matrix

Specifications

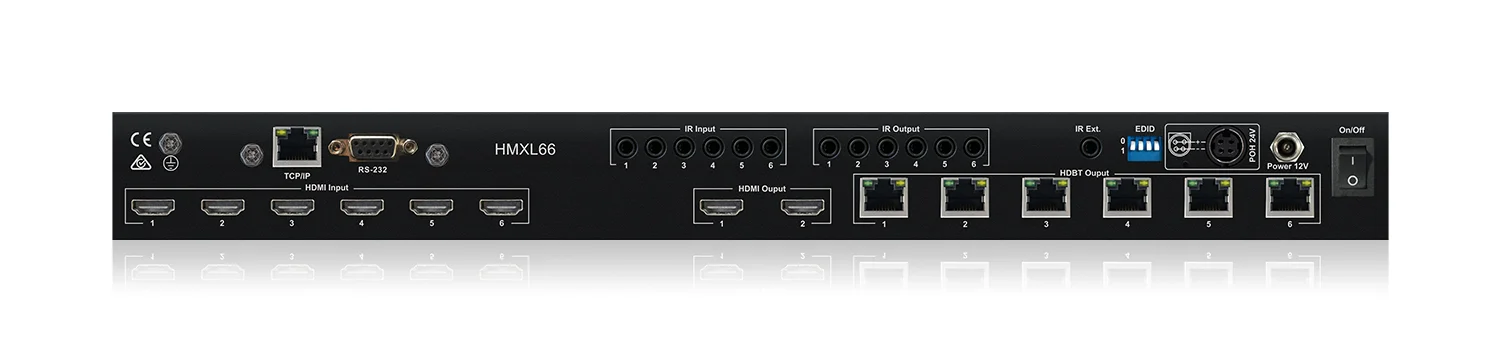

  • Video Input Connectors: 6 x HDMI Type A, 19-pin, female, locking

  • Video Output Connectors: 6 x HDBaseT™ RJ45 connector, 2 x HDMI Type A, 19-pin, female, locking

  • RS-232 Serial Port: DB-9, female

  • TCP/IP Control: RJ45, female

  • IR Input Ports: 7 x 3.5mm stereo jack

  • IR Output Ports: 6 x 3.5mm mono jack

  • Rack-Mountable: 1U rack height, rack ears included

  • Product Dimensions (W x D x H): 444 x 310 x 50mm (with feet & connections)

  • Product Dimensions (W x D x H): 440 x 300 x 45mm (without feet & connections)

  • Product Weight: 3.9kg (excluding accessories)

  • Carton / Box Dimensions (W x D x H): 510 x 400 x 180mm

  • Shipping Weight: 7.2kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 12V/5A DC, screw type connector (matrix power)

  • Power Supply: 24V/6.25A DC, push / pull clip connector (PoH power)

  • Compatible with (HDBaseT™ receivers): HEX70B-RX, RX70AMP (where audio breakout is required within the zone)
    * Discreet IR control not available on HDMI outputs (1 & 2)
