HMXL44-KIT-V2
4x4 HDBaseT™ Matrix Kit - 70m (4K up to 40m), Bi-directional IR & RS-232, PoH (PoE), Simultaneous HDMI / HDBaseT™ Outputs, Audio Breakout with Pre-amp Variable Line Level Control, RS-232 & TCP/IP Control, HDCP 2.2 Compliant, Web GUI, includes 4 x HDBaseT™ Receivers



Description

Our Essential 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The HMXL44-KIT-V2 is a 4K HDCP 2.2 matrix package, delivering  HDMI, Bi-directional IR and PoH (Power over HDBaseT™) up to lengths of 70m over a single CAT cable. The matrix also provides advanced features including Audio breakout with pre-amp variable line-level control, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through to enable 3rd party control of displays and a web browser interface module for control and configuration of the matrix. The HMXL44-KIT-V2 is supplied with 4 x HEX70ED Receivers.

Box Contents

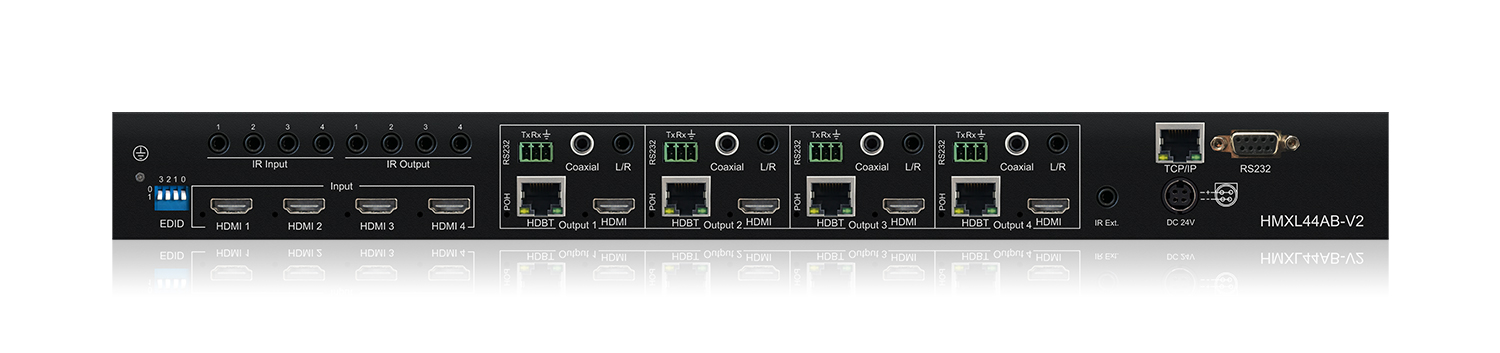

1 x HMXL44AB-V2

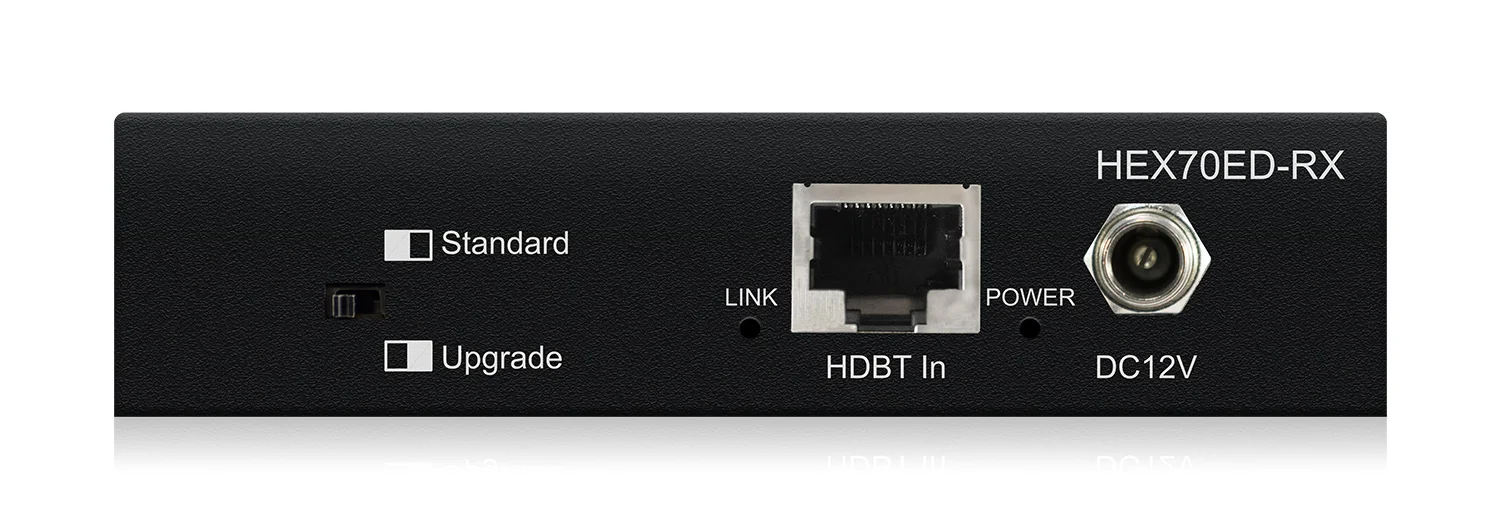

4 x HEX70ED-RX Receivers
1 x Rack Mounting Kit for HMXL44AB-V2
4 x Mounting Kits for HEX70ED-RX
1 x 24V/3.5A Power Supply
1 x IR Remote Control
4 x IRCAB IR Control Cables - 3.5mm-3.5mm Cable
4 x IR Emitters
5 x IRR Receivers


Downloads

Key Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

  • Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ / HDMI outputs

  • Simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone

  • HDMI audio breakout to associated Digital Coax, and analogue L/R audio outputs with pre-amp line level volume control

  • Extends HDMI up to a distance of 70m over single CAT cable

  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports 3D signal display

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Web interface module for control and configuration of Matrix (instructions available in Drivers & Protocols section)

  • Bi-directional IR from all input and output locations

  • Bi-directional RS-232 from all input and output locations

  • Supplied with Blustream IR receivers and emitters

  • Control via front panel , IR, RS-232 and TCP/IP

  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers

  • 3rd Party drivers available for all major home control brands

  • Advanced EDID management

  • HDCP 2.2 compliant

  • Matrix kit is supplied with 4 x HEX70ED-RX HDBaseT™ receivers

  • 1U Design for 19" rack mount integration - mounting kit included

Specification

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female

  • Video Output Connectors: 4 x HDMI Type A, 19-pin, female, 4x HDBaseT™ RJ45 connector

  • Audio Output Connectors: 4 x 3.5mm stereo jack

  • RS-232 serial port: 1x DB-9, female, 4 x 3-pin Phoenix sockets for each zone (DB-9 serial to Phoenix connector cables supplied)

  • TCP/IP Control: 1 x RJ45, female

  • IR Input ports: 5 x 3.5mm stereo jack

  • IR Output ports: 4 x 3.5mm mono jack

  • Rack-Mountable: 1U rack height, rack ears included

  • Unit Dimensions (W x D x H): 440mm x 235mm x 43mm, without feet & connections

  • Unit Dimensions (W x D x H): 440mm x 240mm x 50mm, with feet & connections

  • Unit Weight: 2.98kg

  • Box Dimensions (W x D x H): 505mm x 305mm x 155mm

  • Shipping Weight: 8kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 1 x 24V/3.5A DC
