HDBaseT™ Extender Set - 70m (4K up to 40m), RS-232 Pass Through, Bi-directional IR, Bi-directional PoH (PoE)



Our HEX70ED-KIT 4K HDBaseT™ extender set offers market leading features and outstanding value. The product supports HDMI, RS-232,  Bi-directional IR and Bi-directional PoH (PoE) up to lengths of 70m.

Box Contents

1 x HEX70ED-TX

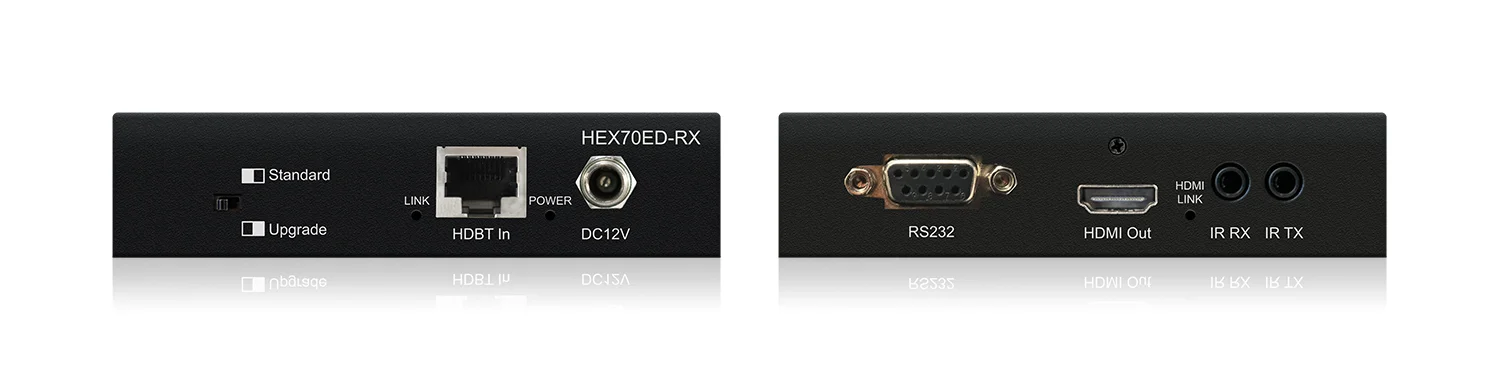

1 x HEX70ED-RX
2 x Mounting Brackets
1 x 12V/2A Power Supply
1 x IR Emitter
1 x IR Receiver
1 x User Manual



Key Features

  • Extends HDMI up to distances of 70m over single CAT cable

  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports 3D signal display

  • Supports CEC bypass (Consumer Electronics Control)

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Supports bi-directional RS-232 pass through

  • Supports bi-directional IR from all input and output locations

  • Supplied with Blustream IR receiver and emitter

  • Advanced EDID management

  • HDCP 1.4 compliant


  • Video Input

    - HEX70ED-TX: 1 x HDMI Type A, 19-pin, female

    - HEX70ED-RX: 1 x HDBaseT™ RJ45

  • Video Output

    - HEX70ED-TX: 1 x HDBaseT™ RJ45

    - HEX70ED-RX: 1 x HDMI Type A, 19-pin, female

  • IR Input Ports: 2 x 3.5mm stereo jack

  • IR Output Ports: 2 x 3.5mm mono jack

  • RS-232 Control: 2 x DB9, female

  • Power Supply: 12V/2A DC, screw type connector

  • Power Consumption: 9.5W

  • Extender Dimensions (W x D x H): 110 x 115 x 26mm (with connections)

  • Extender Dimensions (W x D x H): 110 x 110 x 26mm (without connections)

  • Ind. Extender Weight: 0.35kg (excluding accessories)

  • Carton/Box Dimensions (W x D x H): 295 x 155 x 80mm

  • Shipping Weight: 1.1kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Mounting kit included
