HEX70B-RX
HDBaseT™ Receiver - 70m (4K up to 40m), Bi-directional IR, PoH (PoE), Compatible with HMXL88 & HSP14AB

Description

Our HEX70B-RX 4K HDBaseT™ receiver offers market leading features and outstanding value. The product receives HDMI, Bi-directional IR and Bi-directional PoH (PoE) up to lengths of 70m from a compatible HDBaseT™ transmitter.

Box Contents

1x HEX70B-RX
1x Mounting brackets




Key Features

  • Receives a HDBaseT™ signal from a compatible HDBaseT™ transmitter over distances of up to 70m over single CAT cable

  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports 3D signal display

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Supports bi-directional PoH (Power over HDBaseT™) to power receiver from compatible Blustream Matrix or Transmitter

  • Supports bi-directional IR from all input and output locations

  • HDCP compliant

Specifications

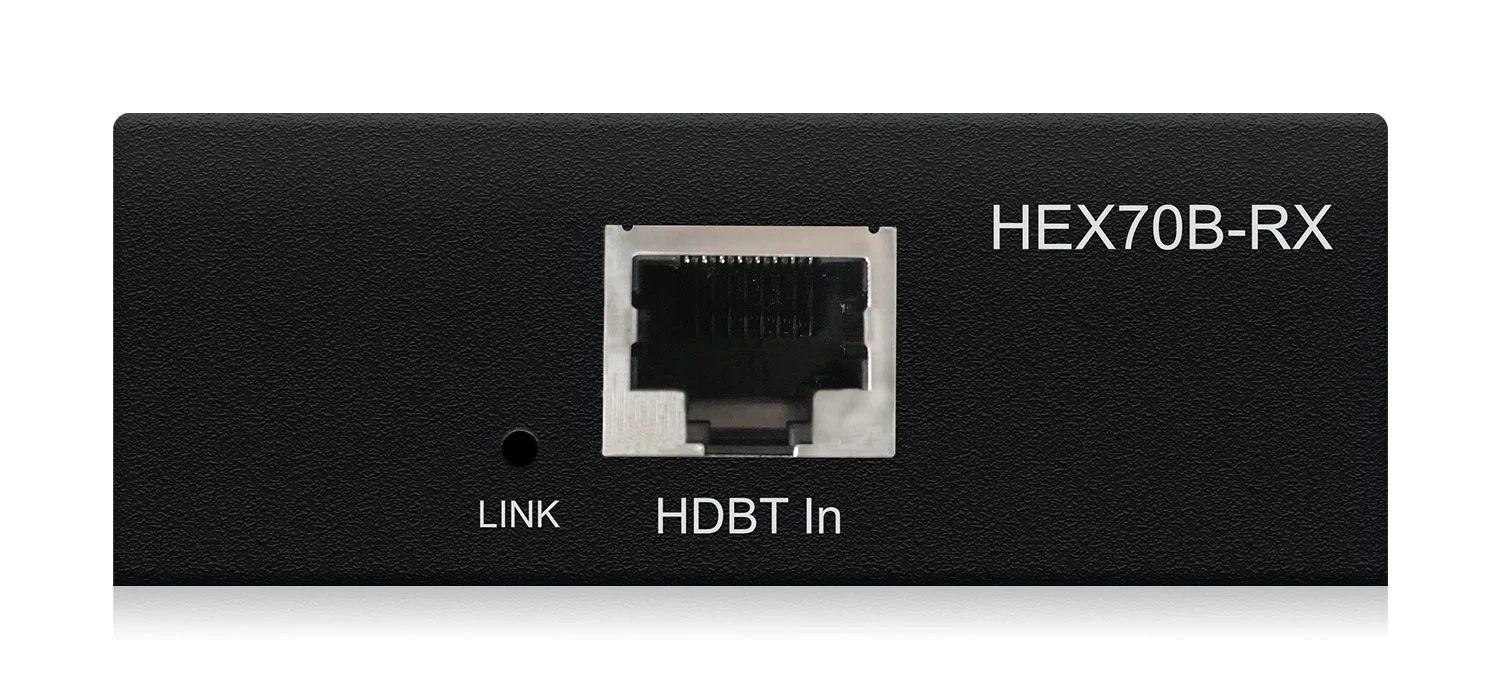

  • Video input: 1x HDBaseT™ RJ45 connector

  • Video output: 1x HDMI Type A, 19-pin, female

  • IR input 1x 3.5mm stereo jack

  • IR output 1x 3.5mm mono jack

  • Power supplied from compatible Blustream Matrix or Transmitter unit

  • Power Consumption 9.5W

  • Product Dimensions (WxDxH): 110 x 75 x 26mm (with connections)

  • Product Dimensions (WxDxH): 105 x 75 x 26mm (without connections)

  • Product Weight: 0.25kg (excluding accessories)

  • Carton / Box Dimensions (WxDxH): 140 x 115 x 35mm

  • Shipping Weight: 0.35kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Mounting kit included
