HEX100CS-RX
HDBaseT™ CSC Receiver Supporting HDMI 2.0 4K 60Hz 4:4:4 up to 70m (1080p up to 100m), Bi-directional IR & RS-232, Audio Breakout, Bi-directional PoH (PoE), HDCP 2.2



Description

Our HEX100CS-RX HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ Receiver offers market leading features and outstanding value utilising CSC technology.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 100m (4K to 70m). The Receiver features simultaneous analogue stereo and digital coax audio breakout.

Box Contents

1 x HEX100CS-RX
1 x Mounting Kit


Downloads

Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR

  • Supports 4K 60Hz 4:4:4 UHD video up to 70m

  • Extends HDMI 1080p video up to 100m

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions

  • HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues

  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently

  • Supports bi-directional RS-232 pass through

  • Supports bi-directional IR pass through

  • Advanced EDID management

  • HDCP 2.2 compliant

Specifications

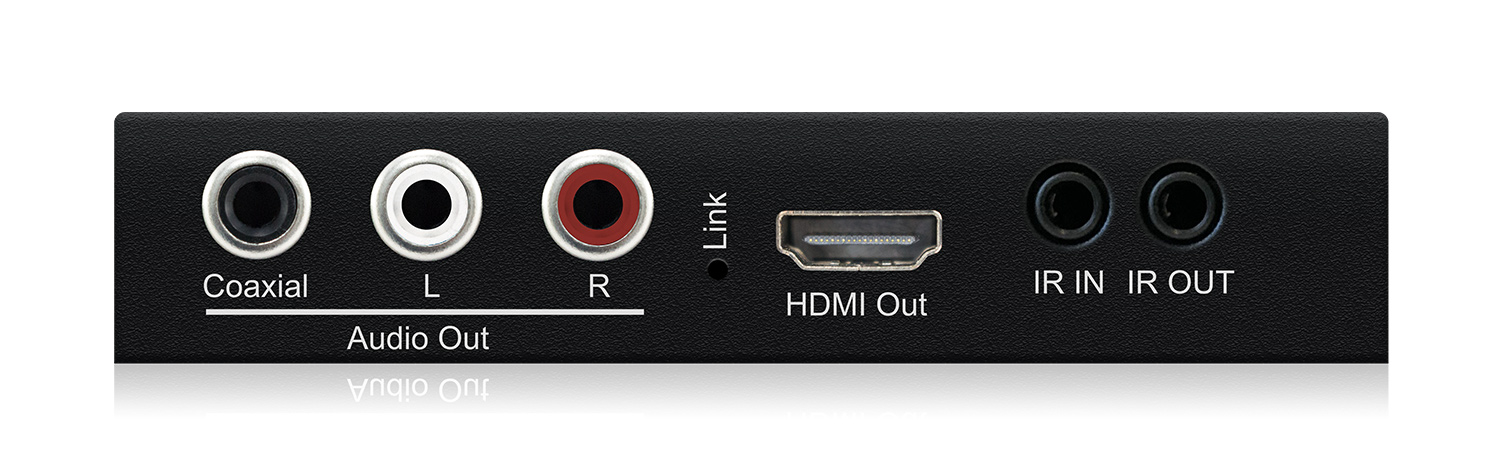

  • Audio Output Connectors: 1 x RCA (SPDIF) & 2 x Analogue RCA (Left / Right)

  • IR Output ports: 1 x 3.5mm mono jack

  • IR Input ports: 1 x 3.5mm stereo jack

  • RS-232 serial port: 1 x DB-9 female

  • Video Output Connectors: 1 x HDMI Type A, female

  • Video Input Connectors: 1 x HDBaseT™ RJ45 connector

  • Power Supply: 12V/2A DC, screw type connector (not supplied)

  • Power Consumption: 5.6W

  • Unit Dimensions (W x D x H): 113 x 124 x 22mm (without connections)

  • Unit Dimensions (W x D x H): 113 x 138 x 22mm (with connections)

  • Unit Weight: 0.35kg (excluding accessories)

  • Carton/Box Dimensions (WxDxH):

  • Shipping Weight: 0.5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Mounting kit included
