HEX100ARC-KIT-V2
HDBaseT™ Extender Set - 100m (4K up to 70m), Bi-directional IR & RS-232, Bi-directional PoH (PoE), HDMI Loop Out, Audio Breakout, ARC, 3 x LAN Switch, Supports HDCP 2.2



Description

Our Platinum Range of HDBaseT™ products offer the very best in performance and flexibility. The HEX100ARC-KIT-V2 extender set is an industry leading 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, Bi-directional IR, RS232 and PoH (PoE) up to lengths of 100m over a single CAT cable. The HEX100ARC-KIT-V2 also provides enhanced features including HDMI loop-out on the Transmitter, ARC via HDMI or Optical (S/PDIF) and an integrated 3-port Ethernet switch.

Box Contents

1 x HEX100ARC-V2-TX
1 x HEX100ARC-RX
1 x 15V/2A DC Power Supply
1 x IRR Receiver
1 x IR Emitter
2 x Mounting Brackets
1 x User Manual


Downloads

Key Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

  • Extends HDMI up to a distance of 100m over single CAT cable at 1080p

  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports 3D signal display

  • Supports CEC bypass (Consumer Electronics Control)

  • Features 1 x HDMI loop out for integrating local displays or cascading to further signal distribution devices

  • Supports ARC (Audio Return Channel) from display via HDMI or Optical digital inputs (to 90m max distance*)

  • Supports audio return to HDMI, Optical digital and analogue L/R audio outputs (DAC PCM only)

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Integrated 3-port 10/100BaseT Ethernet switch (LAN Serving)

  • Bi-directional RS-232 pass through

  • Bi-directional IR from all input and output locations

  • Supplied with Blustream IR receiver and emitter

  • Bi-directional PoH (Power over HDBaseT) to power extenders from either transmitter or receiver end

  • HDCP 2.2 support
    * Where ARC is required over longer distances, it is highly recommended that shielded CAT cable be used

Specifications

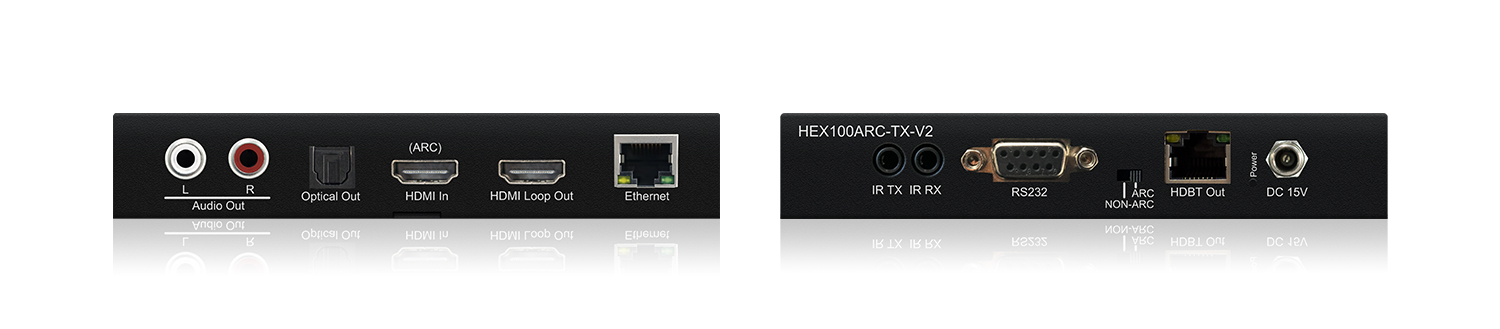

  • HEX100ARC-TX-V2 Transmitter

    - Video Input Connectors: 1 x HDMI Type A, female

    - Video Output Connectors: 1 x HDBaseT RJ45 connector, 1 x HDMI Type A, female

    - Audio Output Connectors: 2 x RCA (L/R), 1x Optical (SPDIF)

    - Ethernet port: 1 x RJ45 connector

    - RS-232 serial port: 1 x DB-9 female

    - IR Input ports: 1 x 3.5mm stereo jack

    - IR Output ports: 1 x 3.5mm mono jack

    - 2 x mounting bracket

    - Ind. Unit Dimensions (W x D x H): 143mm x 135mm x 25mm (TX), without connections

    - Ind. Unit Dimensions (W x D x H): 143mm x 140mm x 25mm (TX), with connections

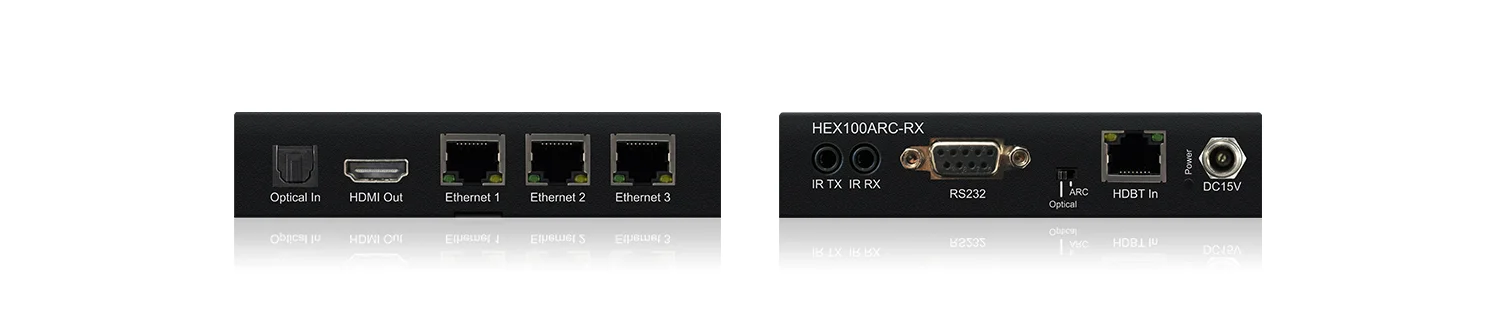

  • HEX100ARC-RX Receiver

    - Video Input Connectors: 1 x HDBaseT RJ45 connector,

    - Video Output Connectors: 1 x HDMI Type A, female

    - Audio Input Connectors: 1 x Optical (SPDIF)

    - Ethernet port: 3 x RJ-45 connector

    - RS-232 serial port: 1 x DB-9 female

    - IR Input ports: 1 x 3.5mm stereo jack

    - IR Output ports: 1 x 3.5mm mono jack

    - Mounting kit included

    - Ind. Unit Dimensions (W x D x H): 114mm x 135mm x 24mm (RX), without connections

    - Ind. Unit Dimensions (W x D x H): 114mm x 139mm x 24mm (RX), with connections

  • Box Dimensions (W x D x H): 340mm x 285mm x 60mm

  • Shipping Weight (Kit): 0.9kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 1 x 15V/2A DC, screw type connector
