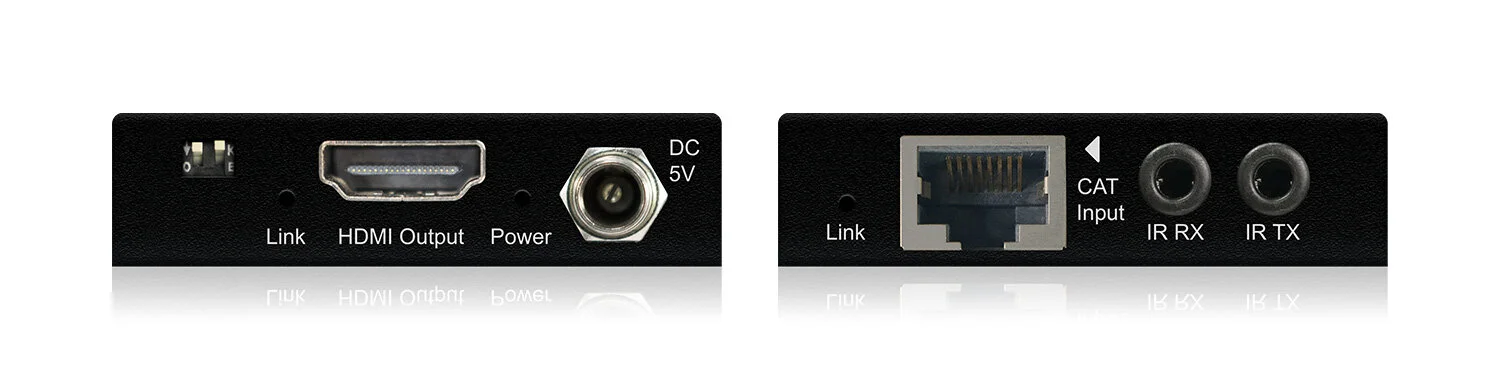

EX40B-KIT
Slim Line HDMI Extender Set - 40m @ 1080p (1080i up to 50m) & Bi-directional IR

Description

Our Slim-Line EX40B-KIT HDMI™ extender set offers HDMI distribution over a single CAT cable at outstanding value. The product delivers HDMI & Bi-directional IR up to lengths of 40m @ 1080p and 50m @ 1080i.

Box Contents

1 x EX40B-TX
1 x EX40B-RX
2 x 5V/1A DC power supply
1 x IR emitter
1 x IR receiver
2 x Mounting brackets
1 x User manual



Key Features

  • Extends HDMI up to distances of 40m over a single CAT cable (1080i up to 50m)

  • Supports video resolutions 480i-1080p*

  • Supports Bi-directional IR from input and output locations

  • Supports LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Supports full 3D signal display

  • Supplied with Blustream IR receiver and emitter

  • Requires local power at both Transmitter and Receiver

  • EDID management

  • HDCP1.4 compliant

* 8-bit colour support only

Specifications

  • Video input

    - EX40B-TX: 1x HDMI Type A, 19-pin, female

    - EX40B-RX: 1x RJ45

  • Video output

    - EX40B-TX: 1x RJ45

    - EX40B-RX: 1x HDMI Type A, 19-pin, female

  • IR input 1x 3.5mm stereo jack

  • IR output 1x 3.5mm mono jack

  • Power Supply 5V/1A DC, screw type connector, one per balun required

  • Dimensions with connections (WxHxD): 58 x 15 x 96mm

  • Shipping Weight: 0.5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

  • Mounting kit included
