DAC11AU
Digital to Analogue Converter (DAC)



Description

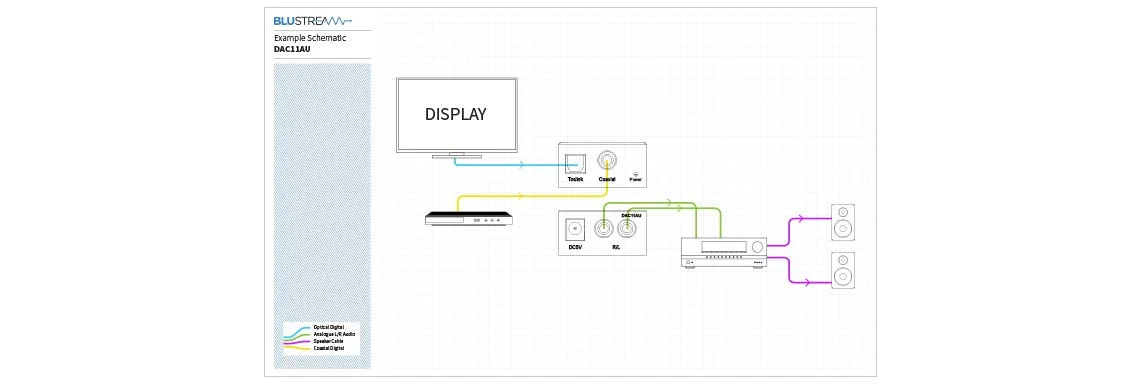

Our DAC11AU is designed to convert either Coaxial or Optical signals from a digital signal to analogue stereo audio. This provides the perfect cost-effective solution when connecting the digital audio output from a TV display to an analogue input on an amplifier. The DAC11AU utilises 192kHz sample rates for enhanced sound reproduction.

Box Contents

1 x DAC11AU
1 x 5V / 1A DC power supply
1 x Mounting kit
1 x User manual





Key Features

  • DAC (Digital to Analogue Audio Converter) converts either digital optical or coaxial to analogue stereo left/right audio output *

  • Auto-detects digital connection in use

  • Optical digital input has priority over coaxial digital input

  • Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution

  • Plug-and-play solution

* DAC11AU does not down-mix Dolby / dts / multi-channel audio signals

Specifications

  • Audio Input Connectors: 1x Optical (SPDIF) & 1x RCA (SPDIF)

  • Audio Output Connectors: 2x Analogue stereo left/right (RCA)

  • Product Dimensions (WxDxH): 45 x 65 x 25mm (with connections)

  • Product Dimensions (WxDxH): 45 x 55 x 25mm (without connections)

  • Product Weight: 0.1kg (excluding accessories)

  • Carton / Box Dimensions (WxDxH): 95 x 135 x 55mm

  • Shipping Weight: 0.3kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 5V / 1A DC, barrel type connection

  • Mounting kit included
