New Products in stock and available today!


At Blustream it is engrained in our philosophy to drive our industry forward with market leading product innovation and customer support. This week sees the addition of 2 new solutions to the range. The HSP14CS is the latest 18 Gbps HDBaseT solution to hit the market. The new CSC version of our industry leading 4-Way HDBaseT splitter has been updated to support 4K 60Hz 4:4:4 sources (Including HDR). The new PAC500AU is our first passive audio extender. Boasting distances of up to 500m, delivering stereo audio over long distances has never been easier. Both new products are in stock and shipping today.

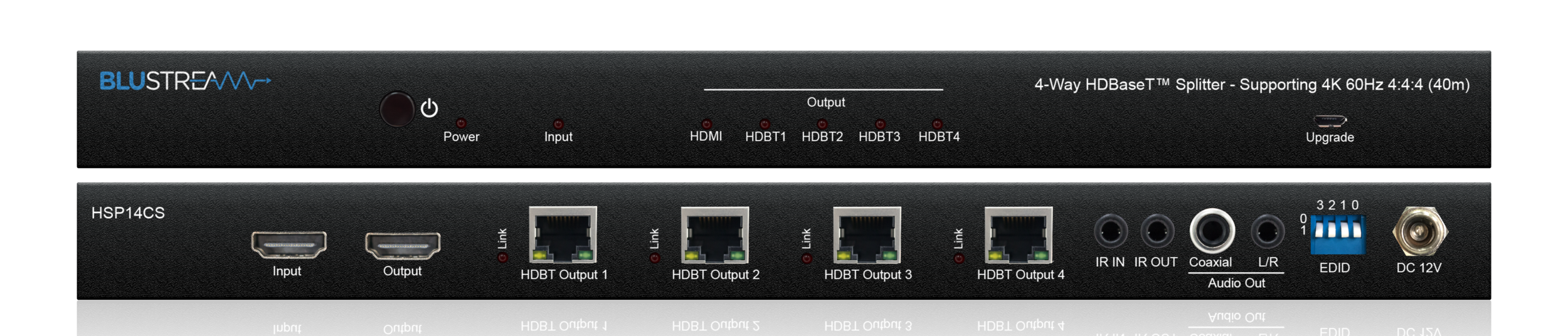

HSP14CS
4-Way HDBaseT™ CSC Splitter - 70m (4K 60Hz 4:4:4 up to 40m), Audio Breakout, EDID Management and HDMI loop out



Description

Our HSP14CS 4K HDBaseT™ CSC splitter distributes a single HDMI 2.0 4K 60Hz 4:4:4 source to four simultaneous HDBaseT™ outputs. It transmits HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m (40m 4K 60Hz 4:4:4) over a single CAT cable. The 4-Way splitter also features audio breakout, EDID management and HDMI loop out for integrating local displays or cascading to multiple devices.

Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR

  • Features 1x HDMI input that is replicated to 4x HDBaseT™ outputs

  • Features 1x HDMI loop out for integrating local displays or cascading to multiple devices

  • Supports 4K 60Hz 4:4:4 UHD video up to 40m

  • Extends HDMI 1080P up to a distance of 70m over single CAT cable

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • HDMI audio breakout to both analogue L/R audio and coaxial digital outputs concurrently

  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers

  • Compatible with the following HDBaseT™ Blustream receivers - HEX70CS-RX (4K 60Hz 4:4:4), HEX70B-RX & HEX70ED-RX (4K 60Hz 4:2:0)

  • HDCP 2.2 support

Specifications

  • Video Input Connectors: 1x HDMI Type A, 19-pin, female

  • Video Output Connectors: 4x HDBaseT™ RJ45, 1x HDMI Type A, 19-pin, female

  • Audio Output Connectors: 1x RCA (SPDIF), 1x 3.5mm stereo jack (L/R)

  • EDID: 4-PIn DIP switch

  • IR Input ports: 1x 3.5mm stereo jack

  • IR Output ports: 1x 3.5mm mono jack

  • Mounting kit included

  • Casing Dimensions (W x D x H): 307mm x 144mm x 23mm

  • Dimensions Including Connections (W x D x H): 307mm x 152mm x 31mm

  • Shipping Weight: 1.1kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 12V/5A DC


PAC500AU
Passive Audio Over CAT Cable


Description

Our PAC500AU Audio over CAT cable extender transmits analogue audio signals up to distance of 500m. This plug and play device requires no power supply making it ideal for simple installations in which analogue audio needs to be extended over long distances.

Key Features

  • Extend analogue audio signals up to distances of 500m over a single CAT cable

  • Passive solution - Extender kit does not require a power supply

Specifications

PAC500AU-TX

  • Audio Input Connectors: 2x RCA analogue left/right

  • Output Connectors: 1x RJ45

PAC500AU-RX

  • Input Connectors: 1x RJ45

  • Output Connectors: 2x RCA analogue left/right

PAC500AU

  • Casing Dimensions (W x H x D): 79mm x 55mm x 24mm

  • Dimensions including connections (W x H x D): 79mm x 63mm x 24mm

  • Shipping Weight: 0.4kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

  • Note: PAC500AU TX/RX units can used as both a transmitter or receiver
