ACM200
Multicast Advanced Control Module for TCP / IP, RS-232 and IR control of Blustream Multicast systems with Web GUI



Description

Our UHD Multicast distribution platform allows distribution of HDMI video over a 1GB Network switch. The ACM200 Advanced Control Module allows for advanced third party control of the Multicast system using TCP/IP, RS-232 and IR.

The ACM200 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB/KVM, Audio and Video. Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

Box Contents

1 x ACM200
1 x IR Control Cable – 3.5mm to 3.5mm Cable
1 x 6-pin Phoenix Connector
1 x Mounting Kit


Downloads

Key Features

  • Web interface module for configuration and control of the Blustream Multicast system

  • Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status

  • Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video

  • Auto system configuration

  • 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:

    - Better system performance as network traffic is separated

    - No advanced network setup required

    - Independent IP address per LAN connection

    - Allows simplified TCP/IP control of Multicast system

  • RS-232 integration for control of Multicast system

  • IR integration for control of Multicast system

  • PoE (Power over Ethernet) to power Blustream product from a PoE switch

  • Local 12V/2A power supply (optional) should Ethernet switch not support PoE (PSU not supplied)

  • Support for iOS and Android App control

  • 3rd Party drivers available for all major home control brands

Specifications

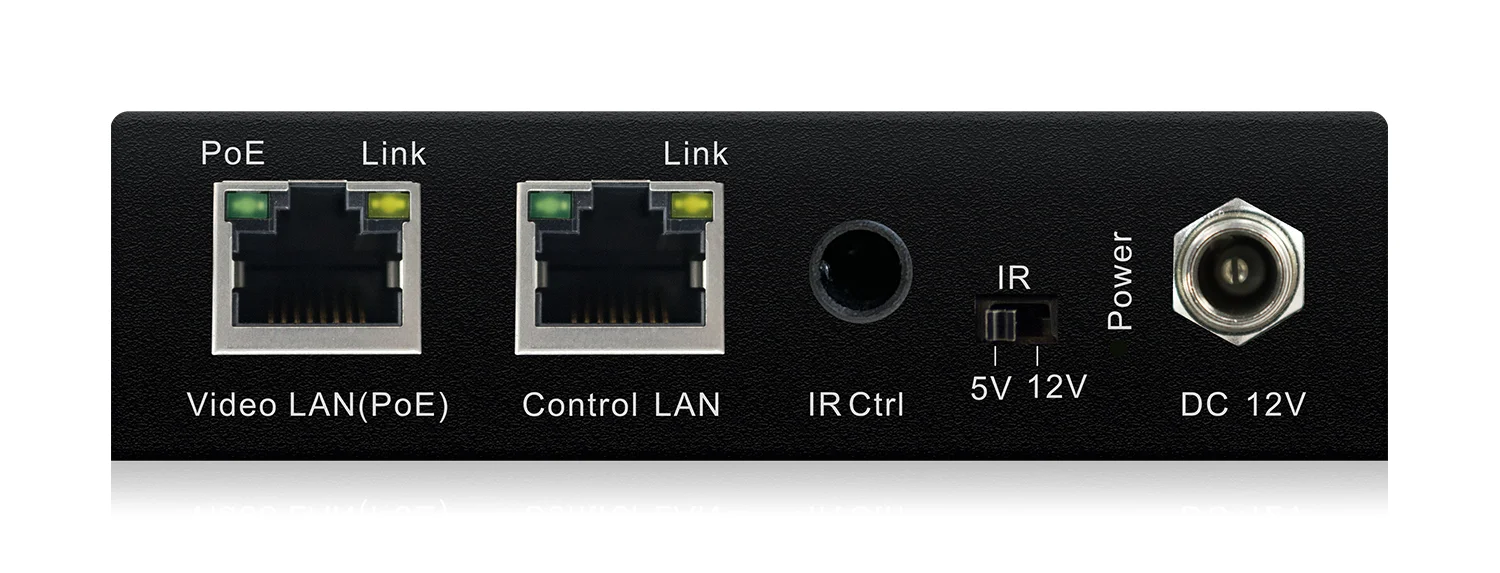

  • Ethernet port: 2 x LAN RJ45 connector (1 x PoE support)

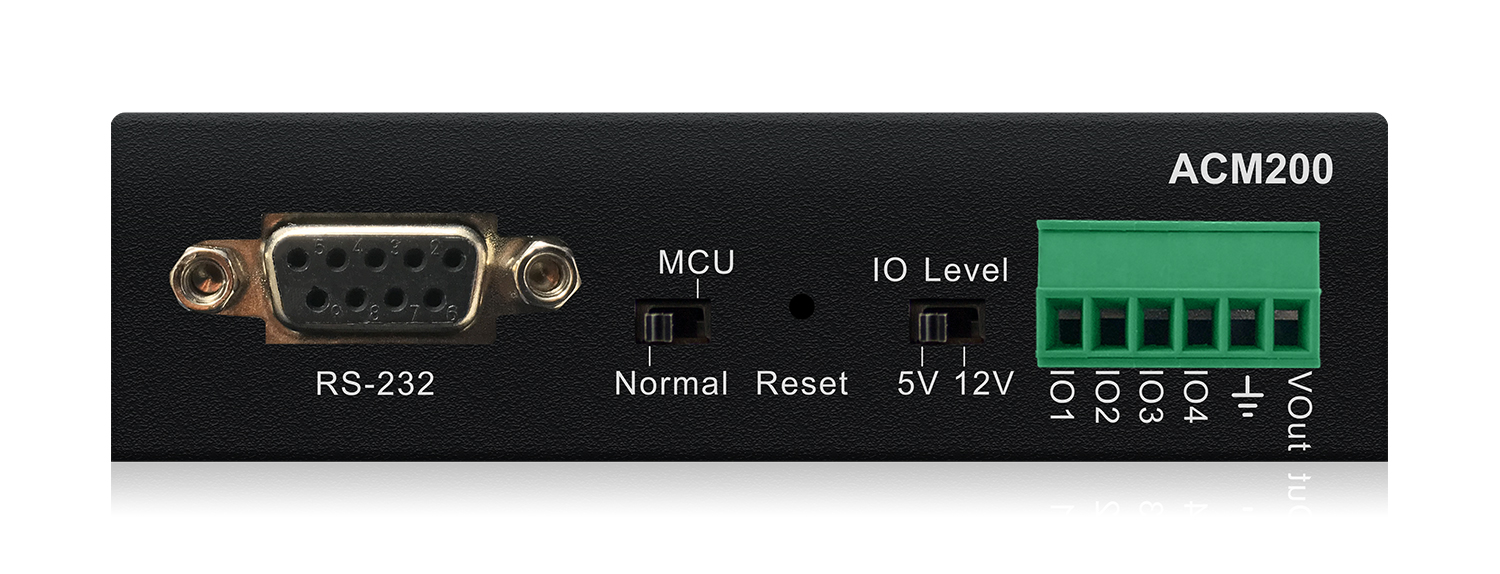

  • RS-232 serial port: 1 x DB-9 female

  • RS-232 & I/O port: 1 x 6-Pin Phoenix connector

  • IR Input ports: 1 x 3.5mm stereo jack

  • Dimensions (W x D x H ): 96mm x 110mm x 26mm

  • Shipping Weight: 0.6kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
