SP14-V2

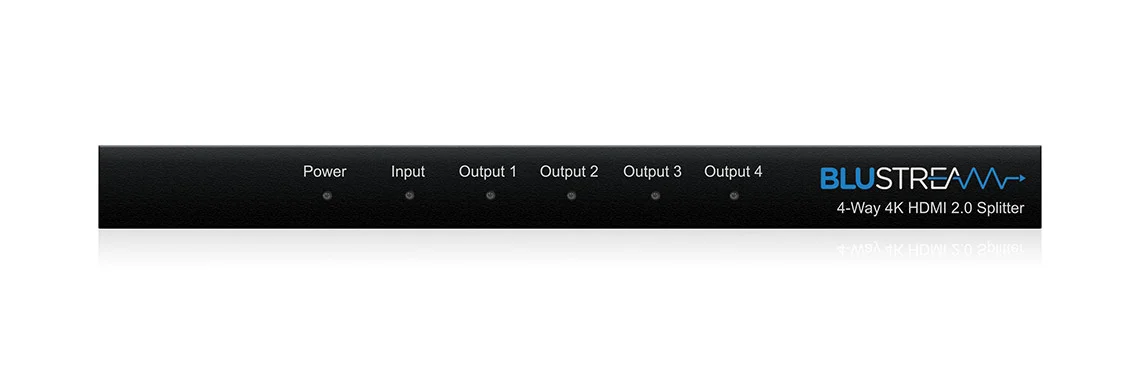

4-Way 4K HDMI 2.0 Splitter with EDID management

Description

Our SP14-V2 4K HDMI 2.0 splitter distributes a single HDMI source to four simultaneous  outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Box Contents

1 x SP14-V2
1 x 5V/2A DC power supply
1 x User manual



Key Features

  • Features 1x HDMI input  that is replicated to 4x HDMI outputs
  • Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
  • HDCP 2.2 compliant
  • Supports 3D signal display
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Advanced EDID management



Specification

  • Video Input Connectors: 1x HDMI Type A
  • Video Output Connectors: 4x HDMI Type A
  • EDID: 4-PIN DIP switch
  • Dimensions (W x D x H): 175mm x 84mm x 15mm , without feet
  • Shipping Weight: 0.4kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/2A DC
