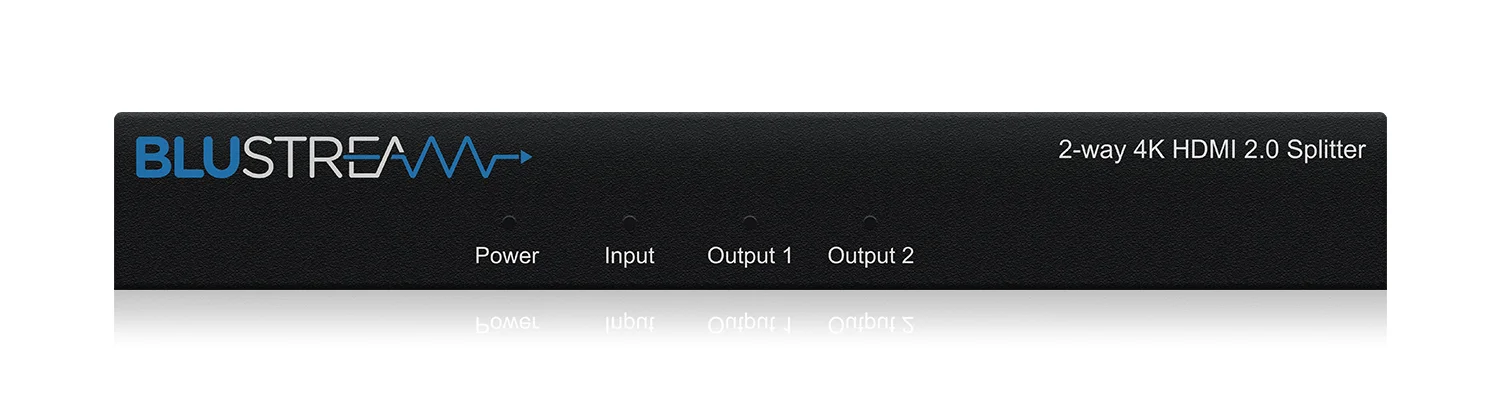

SP12AB-V2
2-Way 4K HDMI splitter with Audio Breakout and EDID Management

Description

Our SP12AB-V2 4K HDMI 2.0 splitter distributes a single HDMI source to two simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Box Contents

1x SP12AB-V2
1x 5V/1A DC power supply
1x Quick Reference Guide



Key Features

  • Features 1x HDMI input  that is replicated to 2x HDMI outputs
  • Supports HDMI 2.0 18 Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
  • Advanced EDID management
  • HDCP 2.2 Support



Specifications

  • Video Input Connectors: 1x HDMI Type A
  • Video Output Connectors: 2x HDMI Type A
  • EDID: 4-PIN DIP switch
  • Audio Output Connectors: 1x RCA (SPDIF), 1x Analogue audio L/R (3.5mm stereo Jack)
  • Dimensions (W x D x H): 159mm x 64mm x 23mm , without feet
  • Shipping Weight: 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/1A DC
