HDBaseT™ Receiver with Integrated Audio Amplifier - 70m HDBaseT Input (4K up to 40m), Local HDMI & Audio Input, 30w per channel digital Amplifier


Our RX70AMP HDBaseT™ Receiver with integrated audio amplifier delivers advanced integration of audio within an AV installation. The HDBaseT™ receiver enables HDMI and Bi-directional IR to be received from up to lengths of 70m over a single CAT cable. The audio from the HDBaseT™ signal can then be extracted and output via either the 30W 2.1ch digital amplifier or via digital audio output. The RX70AMP also features local HDMI and audio inputs, ARC integration, line level output, EDID management and RS-232 control.

Box Contents

1x RX70AMP
1x Remote control
1x Rack mounting kit
1x 18V / 4A power supply
1x IR emitter
1x IR receiver


Key Features

  • Integrated 2.1ch Class-D 30 watt per channel digital stereo amplifier
  • Analogue pre-out Left / Right output + Subwoofer output
  • 3x Audio / Video inputs:
    • HDBaseT™ / Local HDMI source
    • ARC (Audio Return Channel) from connected compatible display device
    • Local analogue Left/Right audio input
  • Extends HDMI up to a distance of 70m over single CAT cable from a compatible HDBaseT™ transmitter
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio de-embedded to both analogue L/R audio and coaxial digital outputs concurrently
  • Supports Audio Return Channel (ARC)* via HDMI and optical input (selectable)
  • Supports bi-directional RS-232 pass through
  • Supports bi-directional IR from all input and output locations
  • Supplied with Blustream IR receivers and emitters
  • Control via IR (remote control included), RS-232
  • Control via front panel button for audio input
  • Advanced EDID management
  • HDCP compliant

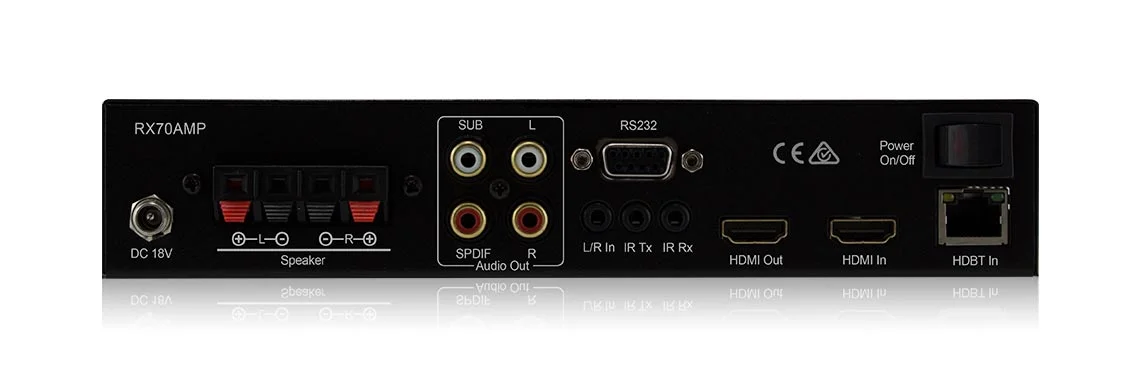

  • Video Input Connectors: 1x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
  • Video Output Connectors: 1x HDMI Type A, female
  • Audio Output Connectors: 1x RCA (SPDIF), 1x RCA (subwoofer), 1x 4-pin spring terminal connector, 2x RCA (L/R)
  • DIP Switch: 4-pin
  • RS-232 Serial Port: DB9, female
  • IR Input Ports: 1x 3.5mm stereo jack
  • IR Output Ports: 1x 3.5mm mono jack
  • Mounting brackets included
  • Product Dimensions (WxDxH): 220 x 135 x 40mm (with connections)
  • Product Dimensions (WxDxH): 220 x 125 x 40mm (without connections)
  • Product Weight: 0.8kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): 340 x 205 x 125mm
  • Shipping Weight: 2.0kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 18V / 4A DC, screw type connector

* ARC not supported over HDBaseT connection
