PRO88HDMI-V2
Custom Pro 8x8 HDMI Matrix  - Supports 4K HDR, IP Control,  2-Way IR

Description

Our Custom Pro 8x8 HDMI Matrix delivers 4K 18Gbps HDR performance for the custom installation market. The PRO88HDMI-V2 is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix featuring Bi-directional IR and a web browser interface module for control and configuration of the matrix.




Key Features

  • Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
  • Supports 18 Gbps 4K UHD video including HDR, HDR10+ and Dolby Vision
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Control via front panel, IR, RS-232 & TCP/IP
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP 2.2 compliant

Specifications

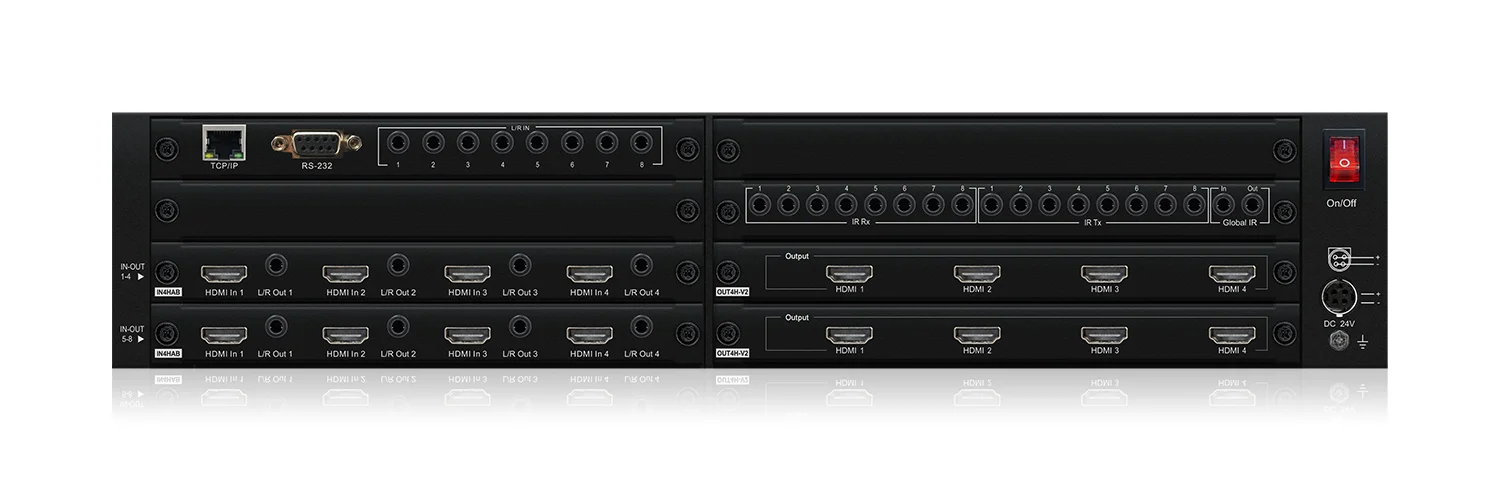

  • Video Input Connectors: 8 x HDMI Type A, 19-pin female
  • Video Output Connectors:  8  x HDMI Type A, 19-pin, female
  • Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
  • TCP/IP Control: RJ45, female
  • Ethernet/Network: RJ45, female
  • RS-232 serial port: DB-9, female
  • Rack-Mountable: 2U rack height, rack ears included
  • Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
  • Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
  • Shipping Weight: 5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/6A DC
