PRO4V4H8HBT70
Custom Pro 8x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m) - 2 x VGA Input, 2 x HDMI Input, HDR, IP Control, PoE, 2-Way IR, 4 x Simultaneous HDMI outputs , Audio Breakout with volume control

Description

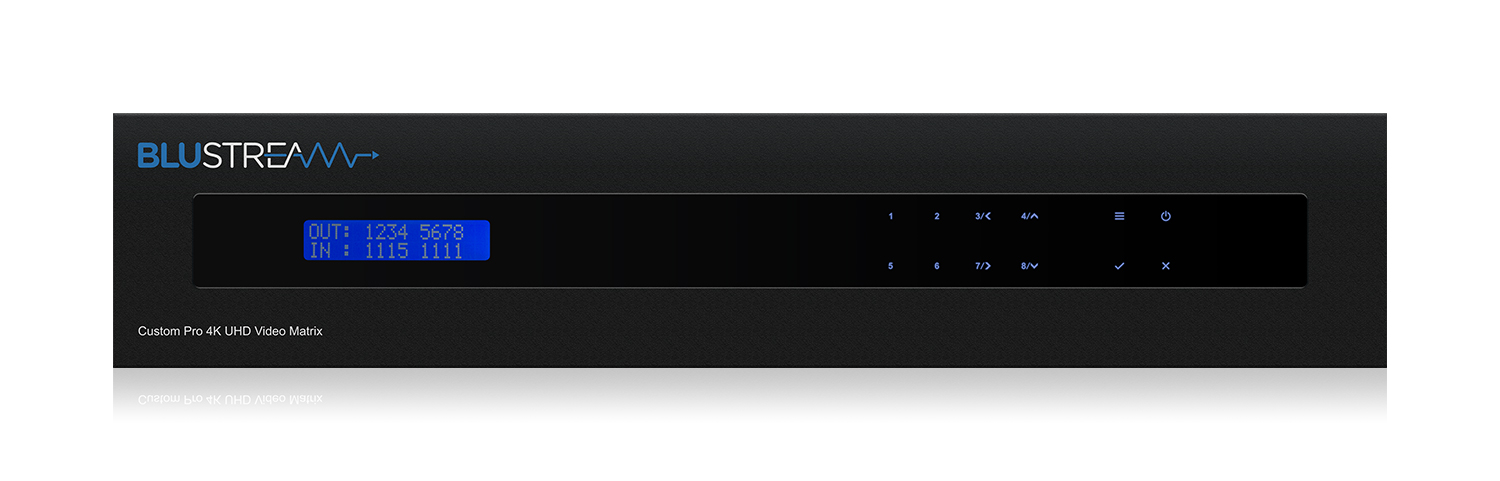

Our Custom Pro HDMI / VGA 8x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market.

The PRO4V4H8HBT70 is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to deliver 2 x HDMI 2 x VGA, Bi-directional IR and PoH (PoE) up to lengths of 100m over a single CAT cable (4K HDR up to 70m).

The Matrix also provides advanced features including 4 x simultanious HDMI outputs, audio breakout with line level pre amp volume control and a web browser interface module for control and configuration of the matrix.



Key Features

  • HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Features  4 x HDMI inputs and 2 x VGA inputs which can be independently routed to 8 x HDBaseT™ outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Supports 4K with HDR
  • Extends HDMI 1080p video up to 70m
  • 4 x Simultaneous HDMI Outputs
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • 8 x simultaneous coaxial digital and variable line-level analogue L/R audio outputs
  • Analogue audio input can be embedded onto any HDMI input
  • Web interface module for control and configuration of Matrix
  • Supports bi-directional IR
  • Supplied with Blustream IR receivers and emitters
  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
  • 3rd Party drivers available for all major home control brands
  • 2U Design for 19" rack mount integration - Mounting kit included
  • Advanced EDID management
  • HDCP 2.2 compliant
  • To be used with the HEX70CS-RX receivers

Specifications

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female, 4 x VGA
  • Video Output Connectors:  8 x HDBaseT™ RJ45 connector, 4 x HDMI Type A, 19-pin, female
  • Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
  • TCP/IP Control: RJ45, female
  • Ethernet/Network: RJ45, female
  • IR Input ports: 9x 3.5mm stereo jack
  • RS-232 serial port: DB-9, female
  • Rack-Mountable: 2U rack height, rack ears included
  • Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
  • Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
  • Shipping Weight: 5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/6A DC
