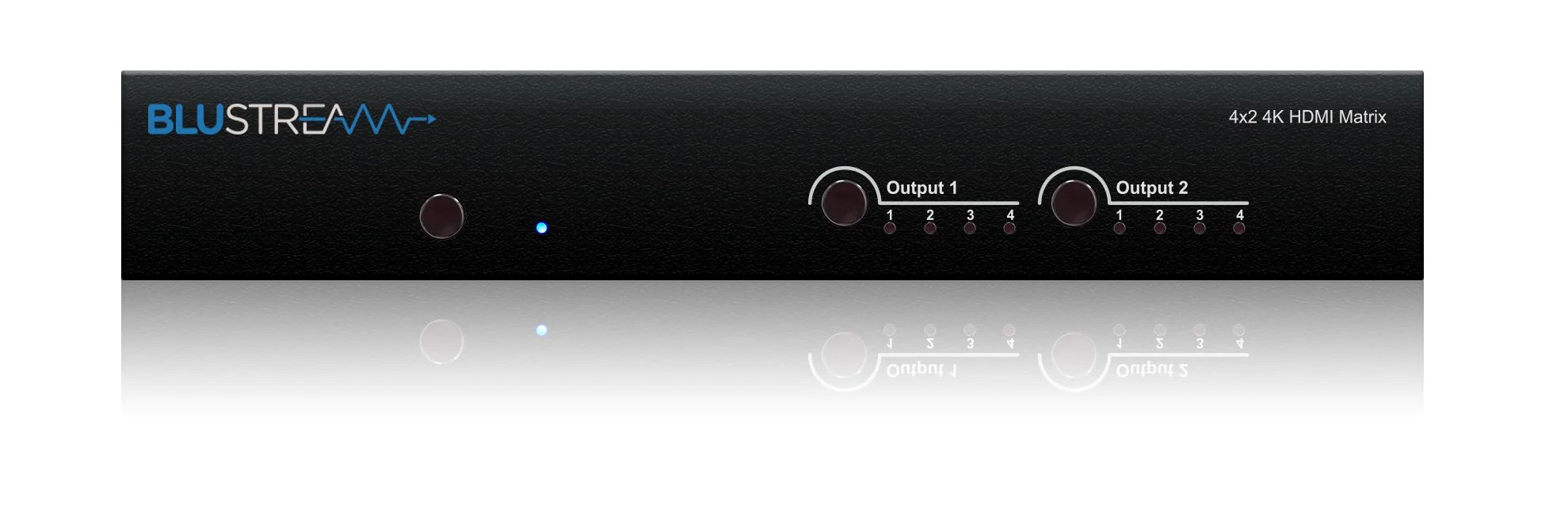

MX42AB
4x2 4K HDMI Matrix with Audio Breakout and EDID Management

Description

Our MX42AB 4K HDMI matrix individually distributes four HDMI sources to two displays enabling all sources to be viewed seamlessly as required within a matrix configuration. The unit transmits all HDMI resolutions up to and including 4K. The 4-input matrix also includes the advanced features of audio breakout, RS-232 control and EDID management.

Box Contents

1x MX42AB
1x 5V / 1A DC power supply
1x Remote control
1x User manual




Key Features

  • Features 4x HDMI inputs which can be independantly routed to both HDMI outputs
  • Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports 3D signal display
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to associated output analogue L/R audio and Coaxial digital outputs concurrently
  • One-way routed IR (for HDMI source control only)
  • Supplied with Blustream IR receivers and emitters
  • Control via front panel, IR and RS-232
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management

Specifications

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking
  • Video Output Connectors: 2x HDMI Type A, 19-pin, female, locking
  • Audio Output Connectors: 2x RCA (SPDIF), 2x Audio 3.5mm stereo jack
  • RS-232 serial port: DB-9, female
  • IR Input ports: 3x 3.5mm stereo jack
  • IR Output ports: 4x 3.5mm mono jack
  • Product Dimensions (WxDxH): 200 x 115 x 50mm (with feet & connections)
  • Product Dimensions (WxDxH): 260 x 105 x 40mm (without feet & connections)
  • Product Weight: 0.8kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): 340 x 205 x 120mm
  • Shipping Weight: 1.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V / 1A DC, screw type connector
