MFP72
7 Input 2 Output Multi-Format Presentation Switch

Description

Our MFP72 is a multi-format presentation switcher with in-built video scaling, audio embedding / de-embedding, and advanced EDID management. The MFP72 works in 2 modes, first as a 7 input dual output switcher (7:1x2), alternatively each output can work independently with Output 1 routing the 4x HDMI inputs only (4:1 up to 4K) and Output 2 switching all 7 video/audio inputs (7:1 up to 1080p).  With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

Box Contents

1x MFP72
1x 5V / 2A DC power supply
1x IR Remote control
1x IR receiver
1x IR control cable - 3.5mm-3.5mm cable (IRCAB)
1x Mounting kit
1x User manual




Key Features

  • Switcher can function in 2 modes:-
    • Splitter mode - both HDMI outputs display the same image from any video input
    • Switcher mode -  HDMI output 1 and 2 are independently controlled
  • HDMI output 1 can view only HDMI inputs 1-4 (up to resolutions of 4K)
  • HDMI output 2 can view all HDMI and analogue video inputs with associated audio (up to 1080p resolution)
  • Built-in video scaling, both up-scaling and down-scaling capabilities
  • Video inputs support industry standard video resolutions including VGA-WUXGA and 480i-4K (including 800x600 @ 60 & 75Hz)
  • Scaled video output resolutions: 720p, 1080p, 1280x1024, 1024x768, 1360x768, 1440x900, 1680x1050
  • Audio embedding - independent analogue L/R audio input can be embedded to HDMI outputs + Analogue L/R audio and Coaxial digital outputs concurrently (feature available for HDMI output 1 + 2 in 'Split mode', 'Switch mode' = HDMI output 2 only).
  • HDMI audio breakout to Analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 in 'Switch mode')
  • Volume control - Controls volume output of HDMI, Analogue L/R audio and Coaxial digital outputs
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
  • Supplied with Blustream  IR receiver and IR link cable

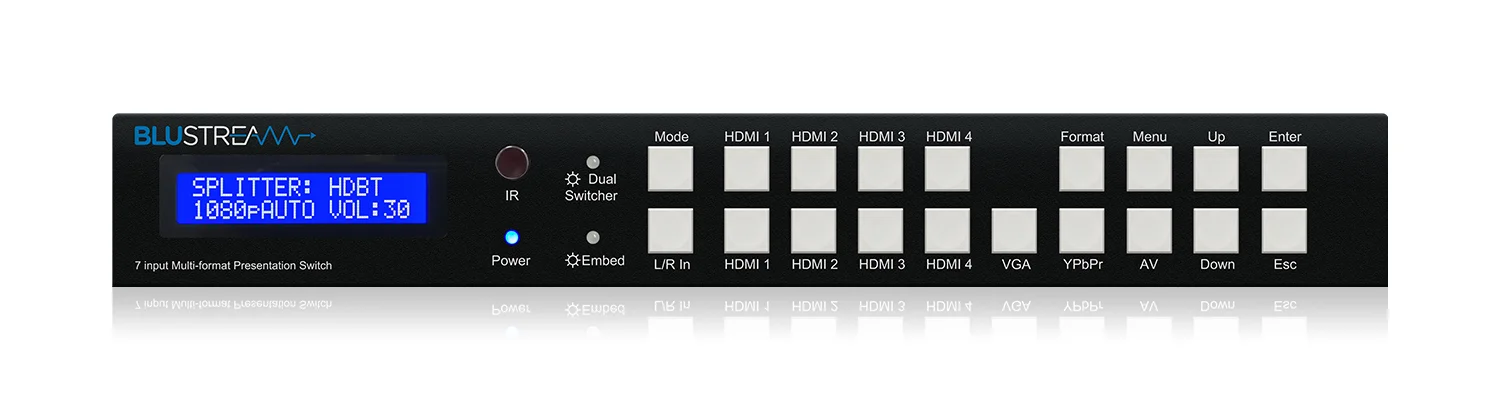

  • Control via front panel, IR and RS-232
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP compliant
  • Supplied with Blustream IR receiver and IR link cable
  • Control via front panel, IR and RS-232
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP compliant



Specifications

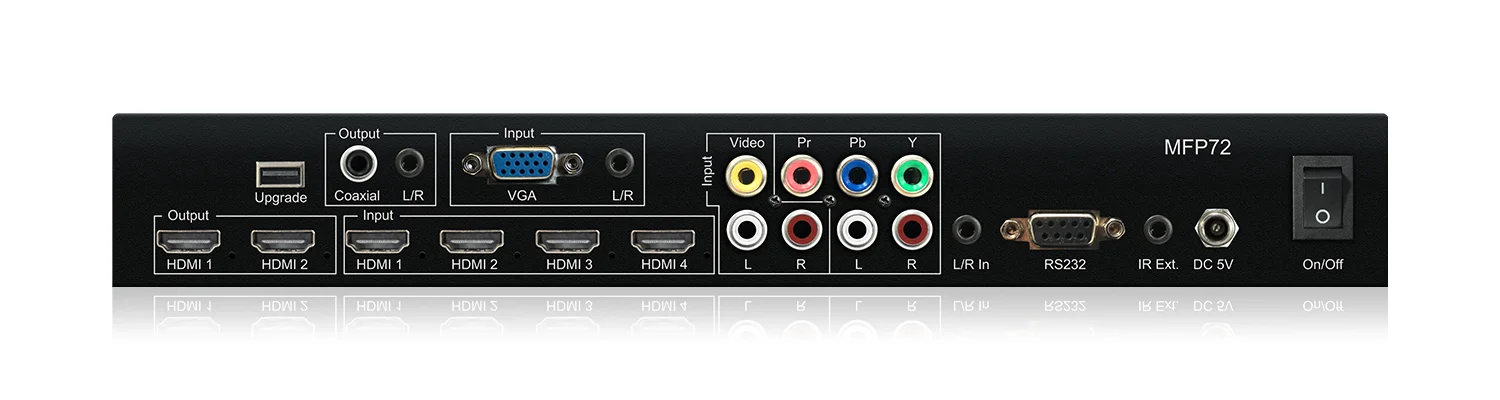

  • Video Input Connectors: 4x HDMI Type A, 1x VGA, 1x Composite, 1x YPbPr
  • Video Output Connectors: 2x HDMI Type A
  • Audio Input Connectors: 2x Analogue audio 3.5mm stereo jack, 4x Analogue audio RCA (2x L/R)
  • Audio Output Connectors: 1x Analogue audio 3.5mm stereo jack, 1x SPDIF Coaxial digital
  • RS-232 serial port: DB-9 connector
  • IR Input ports: 1x 3.5mm stereo jack
  • Casing Dimensions (W x H x D): 323mm x 45mm x 130mm, without feet
  • Dimensions Including Connections (W x H x D): 322mm x 45mm x 140mm
  • Shipping Weight: 1.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V / 2A DC
