HMXL44CS-KIT

4x4 HDBaseT™ CSC Matrix Kit - 70m

Our Essential 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.

The HMXL44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR, RS-232 and PoC up to lengths of 70m over a single CAT cable.

The matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ output 1, audio breakout with pre-amp variable line-level control and a web browser interface module for control and configuration of the matrix.

The HMXL44CS-KIT is supplied with 4 x HEX70CS-RX receivers.

HDMI 4K 60Hz 444 Audio Breakout HDMI2.0 PoC WEB GUI

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ output 1 allows for a display only capable of supporting lower video resolutions (4K @ 60Hz 4:2:0 or 1080p) to receive the native 4K @ 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking on the HEX70CS-RX HDBaseT™ Receivers to help solve HDMI HDCP, compatibility, and handshaking issues
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions
• Analogue (L/R) audio input can be embedded onto any combination of HDMI inputs concurrently
• Web interface module for control and configuration of the matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Supplied with Blustream IR receivers and emitters
• Control via front panel, IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power supplied HDBaseT™ receivers
• 3rd Party drivers available for all major control brands
• 1U Design for 19" rack mount integration - mounting kit included
• Advanced EDID management
• HDCP 2.2 compliant

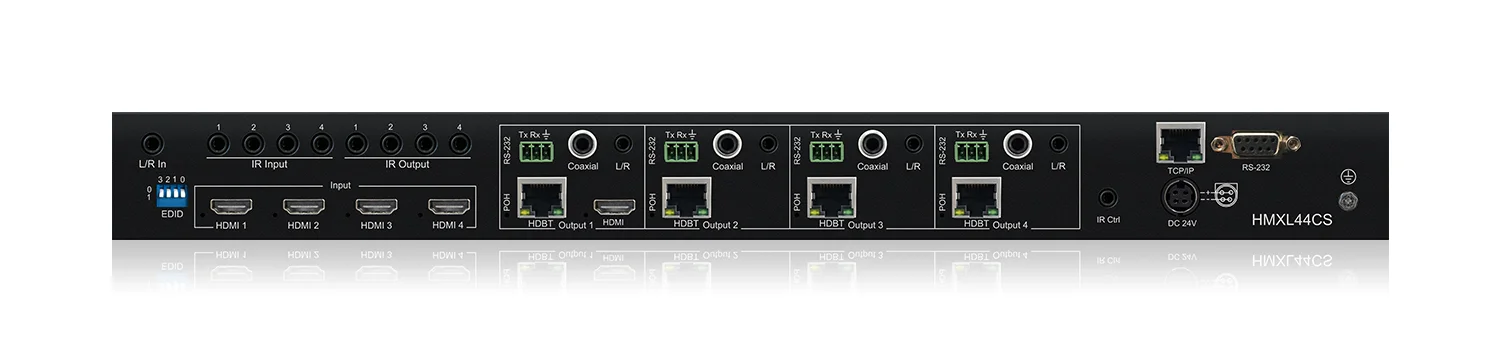

• Video Input Connectors: 4 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connector
• Audio Output Connectors: 4 x 3.5mm stereo jack, 4 x RCA Coaxial Digital
• Audio Input Connectors: 1 x 3.5mm stereo jack
• RS-232 Serial Port: 1 x DB-9, female, 4 x 3-pin Phoenix sockets for each zone (DB9 serial to Phoenix connector cables supplied)
• TCP/IP Control: 1 x RJ45, female
• IR Input Ports: 5 x 3.5mm stereo jack
• IR Output Ports: 4 x 3.5mm mono jack
• Rack Mountable: 1U rack height, rack ears included
• Unit Dimensions (W x D x H): 440mm x 235mm x 44mm (without feet & connections)
• Unit Dimensions (W x D x H): 440mm x 245mm x 52mm (with feet & connections)
• Unit Weight: 2.98kg
• Box / Carton Dimensions (W x D x H): 505mm x 305mm x 155mm
• Shipping Weight: 7.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 1 x 24V/3.5A DC

1 x HMXL44CS

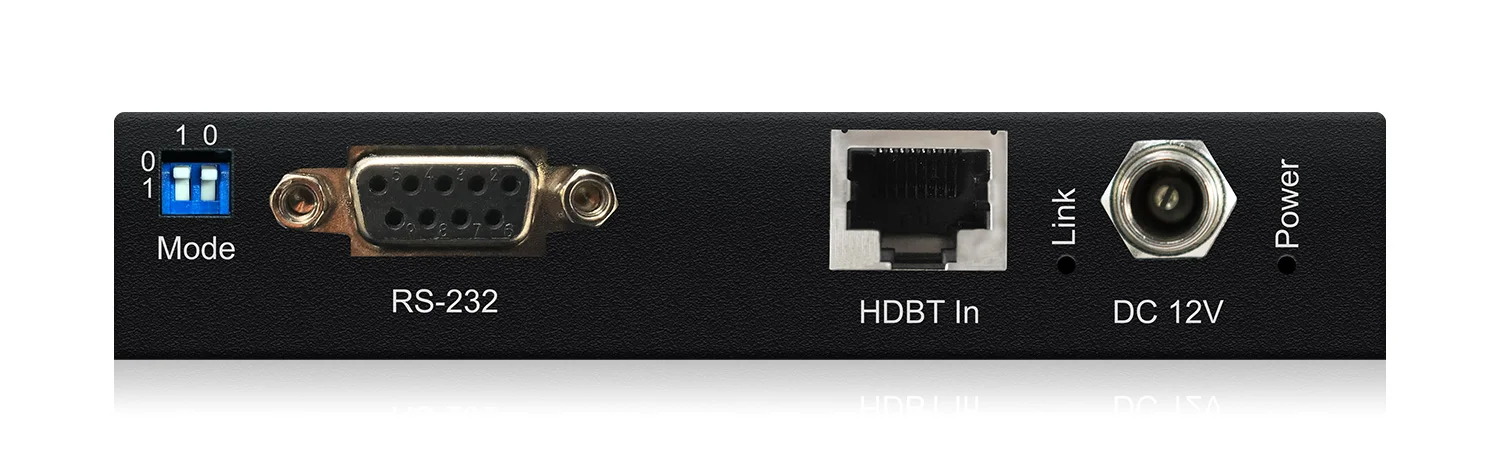

4 x HEX70CS-RX
1 x Rack Mounting Kit for HMXL44CS
4 x Mounting Kits for HEX70CS-RX
1 x 24V/3.5A Power Supply
1 x IR Remote Control
4 x IRCAB IR Control Cables - 3.5mm-3.5mm Cable
4 x IR Emitters
5 x IRR Receivers
