HEX70B-KIT

HDBaseT™ Extender Set - 70m

Our HEX70B-KIT 4K HDBaseT™ extender set offers market leading features and outstanding value.

The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.

HDMI

• Extends HDMI up to distances of 70m over single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K@50/60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Supports CEC bypass (Consumer Electronics Control)
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports bi-directional IR from all input and output locations
• Supplied with Blustream IR receiver and emitters
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• HDCP 2.2 compliant

• Video Input:

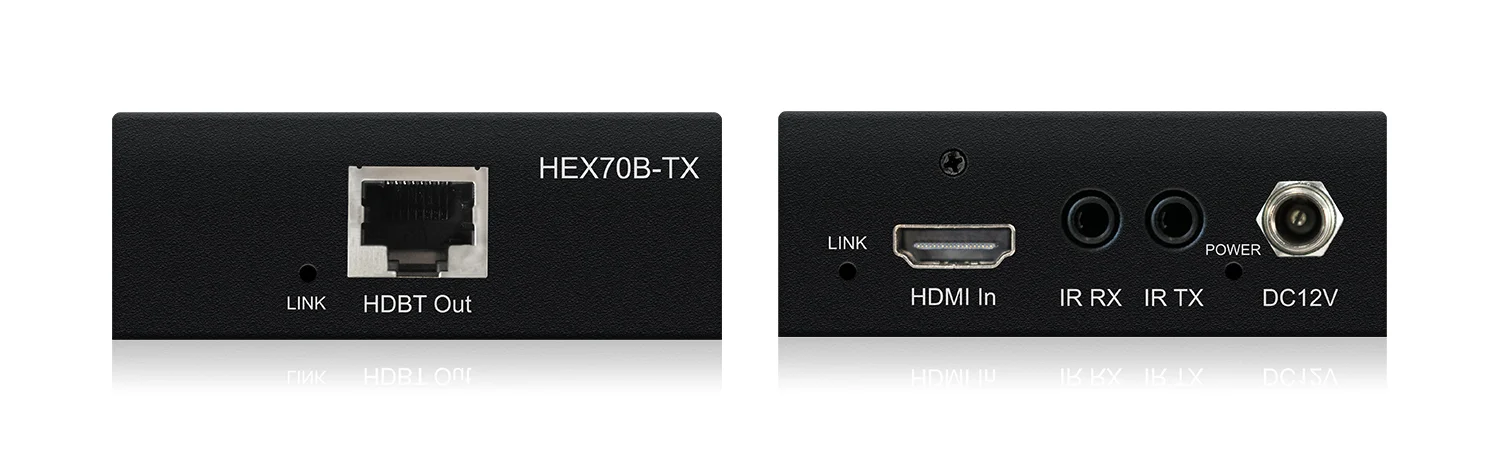

- HEX70B-TX: 1 x HDMI Type A, 19-pin, female

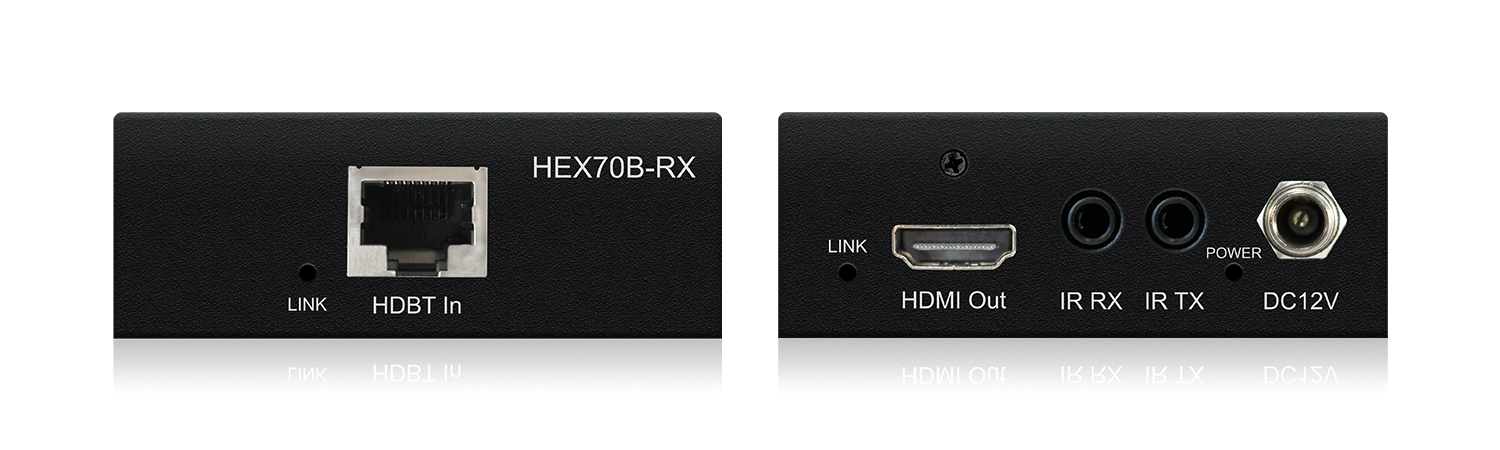

- HEX70B-RX: 1 x HDBaseT™ RJ45
• Video Output:
- HEX70B-TX: 1 x HDBaseT™ RJ45
- HEX70B-RX: 1 x HDMI Type A, 19-pin, female
• IR Input Ports: 2 x 3.5mm stereo jack
• IR Output Ports: 2 x 3.5mm mono jack
• Power Supply: 12V/2A DC, screw type connector
• Power Consumption: 9.5W
• Ind. Extender Dimensions (W x D x H): 105mm x 73mm x 27mm, without connections
• Ind. Extender Dimensions (W x D x H): 110mm x 75mm x 27mm, with connections
• Ind. Unit Weight: 0.25kg
• Box Dimensions (W x D x H): 295mm x 155mm x 80mm
• Shipping Weight: 0.95kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Mounting Kit Included

1 x HEX70B-TX
1 x HEX70B-RX
1 x 12V/2A DC Power Supply
1 x IR Emitter
1 x IR Receiver
2 x Mounting Bracket Sets
1 x User Manual
