The Custom Pro 4K Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.

Key Features

  • 2-Way and 4-Way interchangeable input & output boards

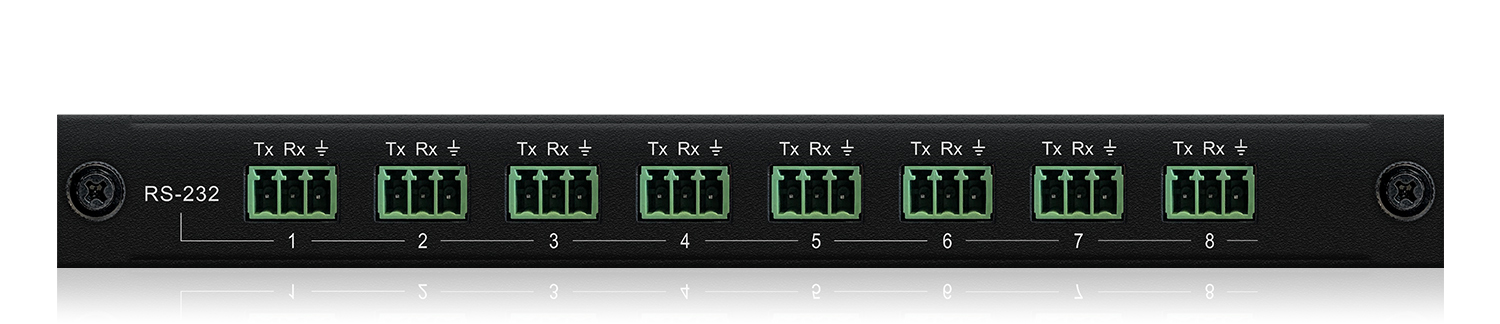

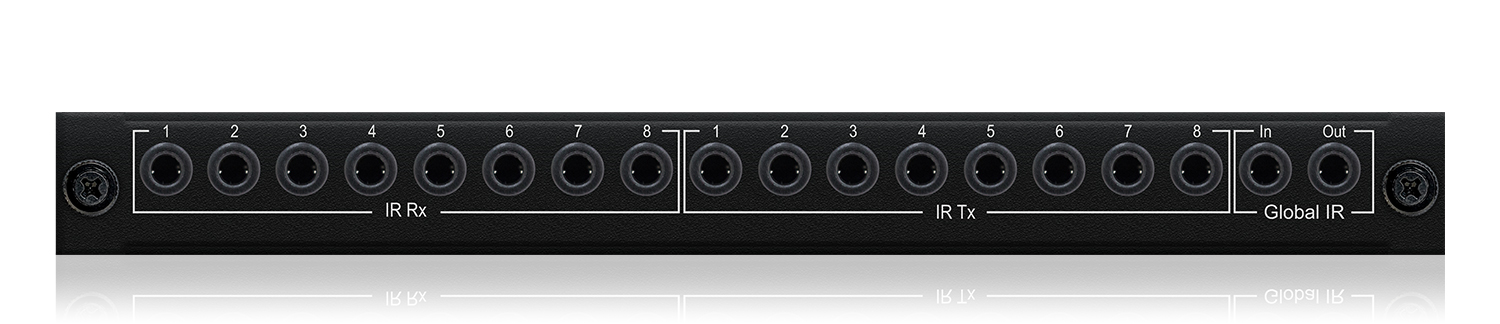

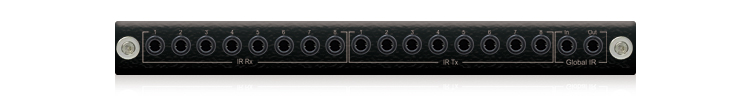

  • Optional control boards: IR Routing, Audio breakout, RS-232
  • HDCP2.2 compliant
  • Pre-configured PRO Matrix models available
  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Supports 4K UHD video up to 40m at 4K over HDBaseT™
  • Web interface module for control and configuration of Matrix
  • Control of Matrix via front panel, IR, RS-232 and TCP/IP
  • 3rd Party drivers available for major home control brands
  • Advanced EDID management
  • 2U Design for 19” rack mount integration - rack mounting kit included

New for Summer 2018

Blustream is delighted to announce the arrival of the first HDBaseT™ matrix solutions that support 4K HDR resolutions. The Custom Pro range is expanding with a host of new 4K HDR supported boards. What do we mean by that?  We mean that by using our advanced Colour Space Conversion the Custom Pro supports 18Gbps 60 Hz 4:4:4 (4K HDR). With a Custom Pro Matrix you can choose the configuration that best suits your client; we have also prepared some pre-configured alternatives that boast audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through and a web browser interface module for enhanced control. The new Custom Pro solution is the perfect choice for installations that aspire to deliver the very latest 4K HDR resolutions.


Choose a Preconfigured 4K HDR Matrix

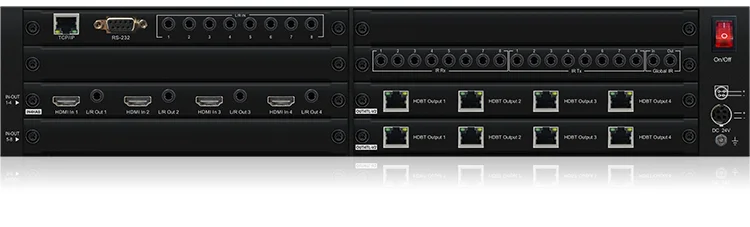

PRO48HBT70CS
Custom Pro 4x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m) - Supports HDR, IP Control, PoE, 2-Way IR and Audio Breakout


Our Custom Pro 4x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market. The PRO48HBT70CS is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoH (PoE) up to lengths of 70m over a single CAT cable (4K HDR up to 40m). The Matrix also provides advanced features including audio breakout and a web browser interface module for control and configuration of the matrix.


PRO88HBT100CS
Custom Pro 8x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 70m) - Supports 4K HDR, IP & RS-232 Control, PoE, 2-Way IR, 4 x Simultaneous outputs, Audio Breakout with volume control


Our 100m Custom Pro 8x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market. The PRO88HBT100CS is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoH (PoE) up to lengths of 100m over a single CAT cable (4K HDR up to 70m). The Matrix also provides advanced features including 4 x simultaneous HDMI outputs, audio breakout with line level pre amp volume control and a web browser interface module for control and configuration of the matrix.

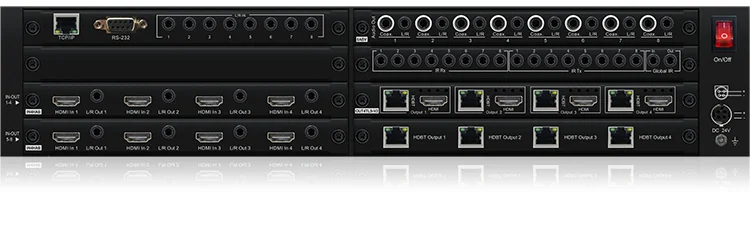

PRO88HBT70CS
Custom Pro 8x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m) - Supports 4K HDR, IP Control, PoE, 2-Way IR, 4 x Simultanious HDMI outputs , Audio Breakout with volume control


Our 70m Custom Pro 8x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market. The PRO88HBT70CS is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoH (PoE) up to lengths of 70m over a single CAT cable (4K HDR up to 40m). The Matrix also provides advanced features including 4 x simultaneous HDMI outputs, audio breakout with line level pre-amp volume control and a web browser interface module for control and configuration of the matrix.


PRO4V4H8HBT70
Custom Pro 8x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m) - 2 x VGA Input, 2 x HDMI Input, HDR, IP Control, PoE, 2-Way IR, 4 x Simultaneous HDMI outputs , Audio Breakout with volume control


Our Custom Pro HDMI / VGA 8x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market.The PRO4V4H8HBT70 is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to deliver 2 x HDMI 2 x VGA, Bi-directional IR and PoH (PoE) up to lengths of 100m over a single CAT cable (4K HDR up to 70m).

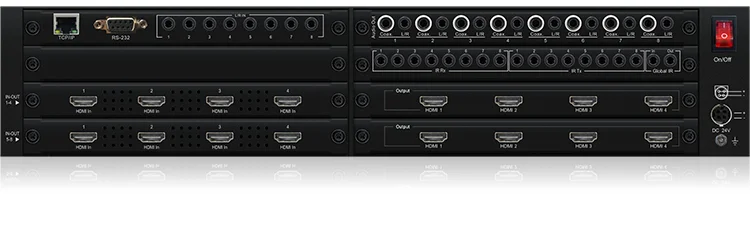

PRO88HDMI-V2
Custom Pro 8x8 HDMI Matrix  - Supports 4K HDR, IP Control,  2-Way IR


Our Custom Pro 8x8 HDMI Matrix delivers 4K 18Gbps HDR performance for the custom installation market. The PRO88HDMI-V2 is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix featuring Bi-directional IR and a web browser interface module for control and configuration of the matrix.


Configure your perfect matrix

Build your own matrix specific to the needs of your AV project. Simply purchase the signal and control boards required, then either have it built by us complete for install or as component parts to construct as required. We have developed auto assigning firmware for the Custom Pro Matrix, you simply screw in the boards required and the unit will assign the correct firmware. It really is as easy as that!

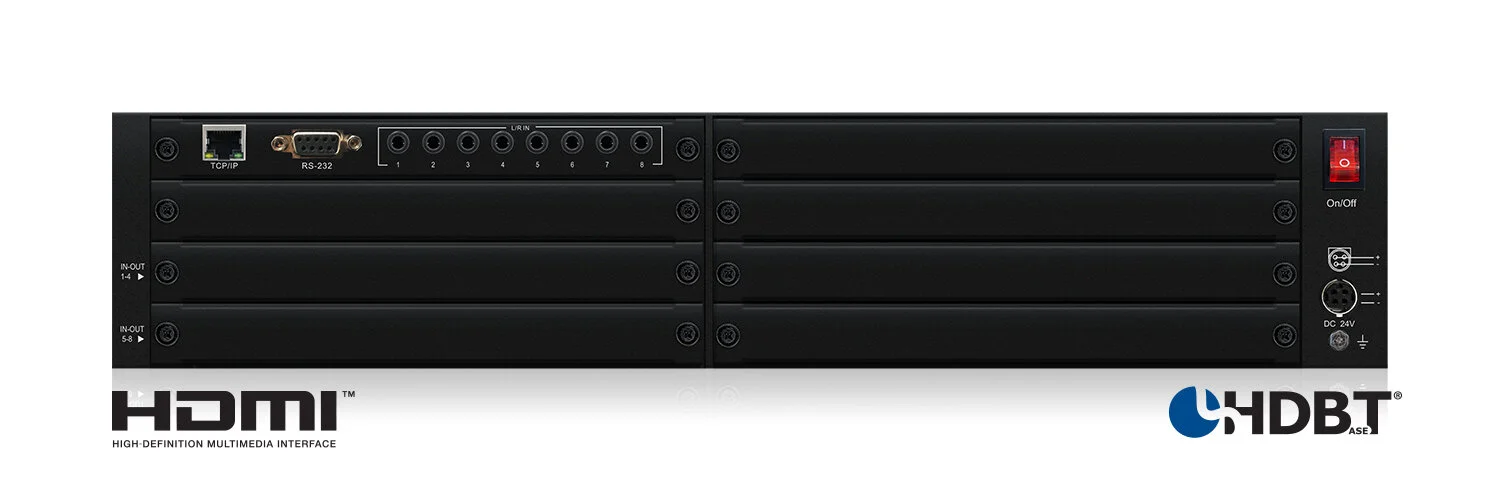

CUSTOMPRO-HUB
Custom Pro Matrix Hub featuring 8x Modular Bays, Line Level Audio Inputs, PoH (PoE) HDCP 2.2 & Web GUI


Description

The Custom Pro Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT™/HDMI outputs, 2-way routed IR and RS-232 pass through.  A web browser interface module and App for control and configuration of the matrix is included as standard as well as analogue audio embedding per zone.

Specifications

  • Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
  • RS-232 serial ports: 1x 9-pin RS-232 connector
  • TCP/IP Control: 1x RJ45, female
  • Rack-Mountable: 2U rack height, rack ears included
  • Casing Dimensions (W x H x D): 440mm x 87mm x 282mm without feet
  • Casing Dimensions (W x H x D): 440mm x 94mm x 288mm with feet / connections
  • Shipping Weight: 5.0kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/6A DC

Key Features

  • Custom Pro Matrix Hub with 8x modular bays for population of control & input/output boards
  • Up to 8x video inputs and 8x video outputs can be achieved using Custom Pro boards
  • 8x analogue L/R audio inputs which can be embedded onto corresponding HDMI/HDBaseT™ zone outputs
  • Control of Matrix via front panel, IR, RS-232, TCP/IP and web GUI / App
  • Supports PoH (Power over HDBaseT™) when used with compatible HDBaseT™ input/output cards
  • Web interface module for control and configuration of Matrix
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP2.2 compliant

NEW - 4K HDMI 2.0 Input Boards

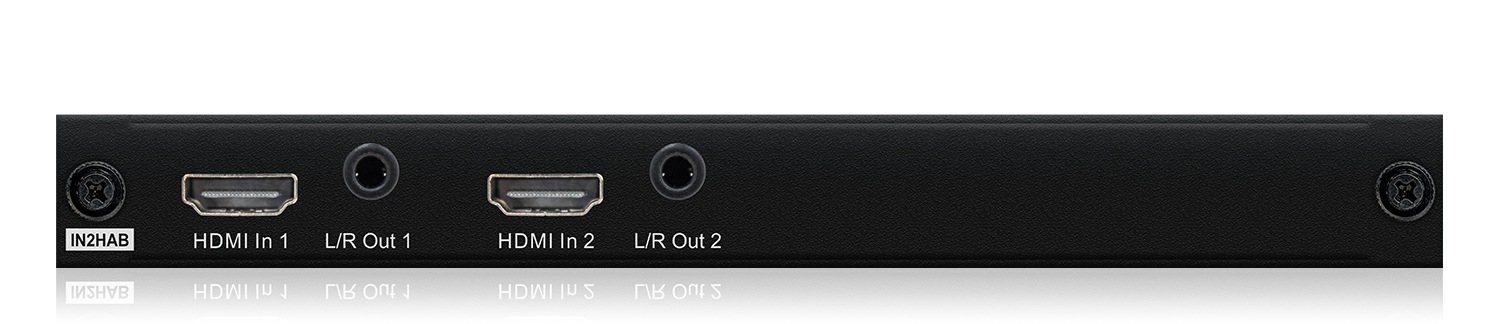

PRO-IN2HAB
2-Way HDMI 2.0 Board with Audio Breakout


Key Features

  • Features 2x HDMI 2.0 inputs which can be independently routed to video output cards
  • Supports HDMI 2.0 18Gbps specification including HDR support
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Each HDMI input includes an independant fixed level 2ch analogue audio breakout allowing connection to a local third party audio solution (supports 2ch PCM)
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP2.2 Support

*For HDMI 2.0 18Gbps video distribution the PRO-IN2HAB must be used with a HDMI 2.0 18Gbps Custom Pro output board

Description

The PRO-IN2H2V input board offers 2x HDMI and 2x VGA sources that can be independently routed to any HDMI/HDBaseT™ output board and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Input Connectors: 2x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 2x Analogue Left/Right audio (3.5mm stereo jack)
  • Card Dimensions (W x H x D): 170mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

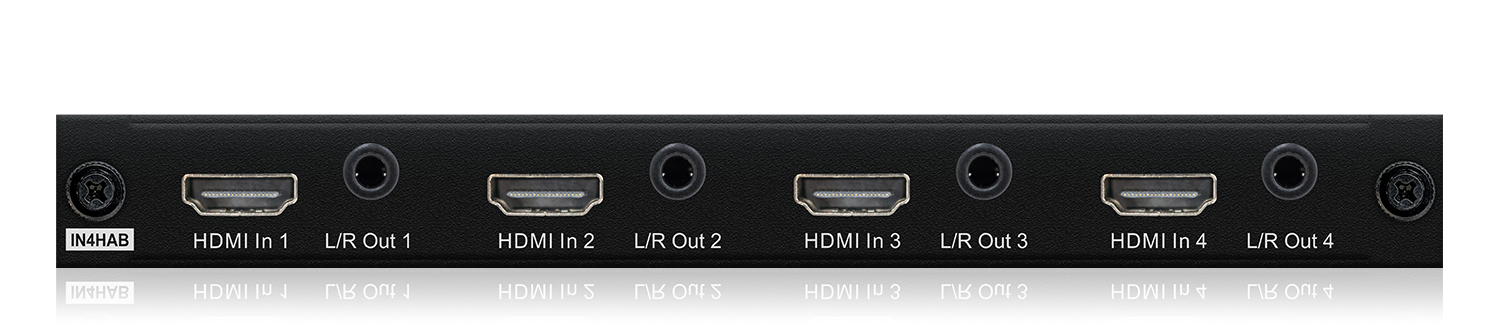

PRO-IN4HAB
4-Way HDMI 2.0 Board with Audio Breakout


Key Features

  • Features 4x HDMI 2.0 inputs which can be independently routed to video output cards
  • Supports HDMI 2.0 18Gbps specification including HDR support
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Each HDMI input includes an independent fixed level 2ch analogue audio breakout allowing connection to a local third party audio solution (supports 2ch PCM)
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 Support

*For HDMI 2.0 18Gbps video distribution the PRO-IN4HAB must be used with a HDMI 2.0 18Gbps Custom Pro output board

Description

The PRO-IN4HAB board features 4x HDMI 2.0 inputs supporting 4K 60Hz 4:4:4 that can be independently routed to any HDMI/HDBaseT™ output board. Each HDMI input includes an independent fixed level 2ch analogue audio breakout and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 4x Analogue Left/Right audio (3.5mm stereo jack)
  • Card Dimensions (W x H x D): 170mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

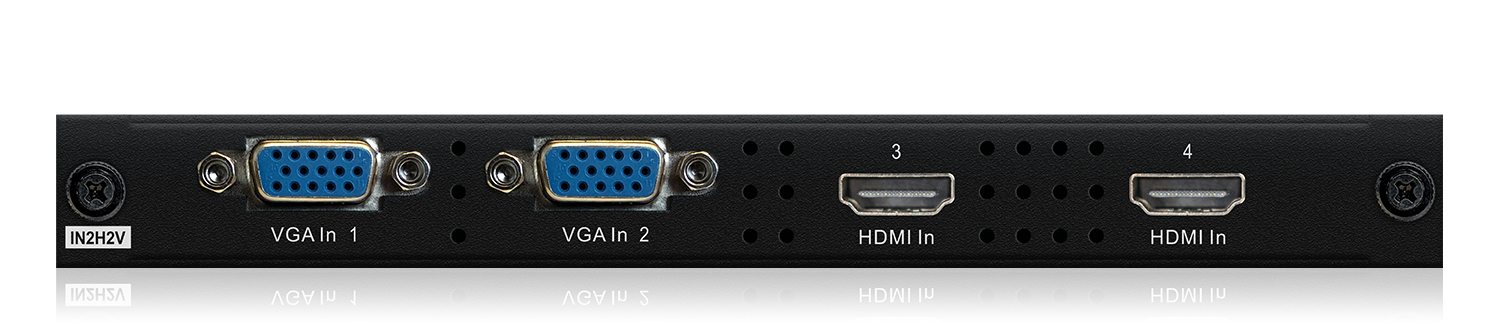

PRO-IN2H2V
4-Way HDMI 2.0 & VGA Board


Key Features

  • Features 2x HDMI and 2x VGA inputs which can be independently routed to video output cards
  • Supports up to 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP2.2 Support

Description

The PRO-IN2H2V input board offers 2x HDMI and 2x VGA sources that can be independently routed to any HDMI/HDBaseT output board and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Input Connectors: 2x HDMI Type A, 19-pin, female, 2x VGA
  • Card Dimensions (W x H x D): 170mm x 22mm x 182mm
  • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

NEW - 4K HDR HDBaseT Output Boards

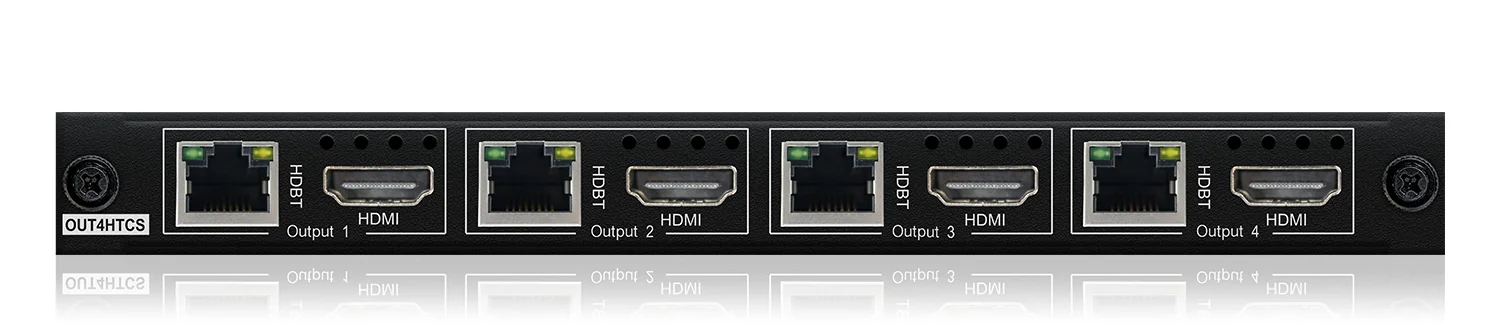

PRO-OUT4HTCS
4-Way Simultaneous HDMI/HDBaseT™ CSC Output Board - 4K HDR up to 70m


Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Features 4x simultaneous HDMI/HDBaseT™ outputs for connection to HDMI displays and HDBaseT™ receivers
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
  • Supports 4K 60Hz 4:4:4 UHD video up to 70m*
  • Extends HDMI 1080p video up to 100m
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Supports PoH (PoE) to power Blustream HDBaseT™ Receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP2.2 Support
  • To be used with the HEX100CS-RX receivers

*For HDMI 2.0 18Gbps video distribution the PRO-OUT4HTCS must be used with a HDMI 2.0 18Gbps Custom Pro input board

Description

The PRO-OUT4HTCS output board offers 4x dual HDBaseT™ outputs  for connection to a HDBaseT™ receiver and HDMI display per zone. The PRO-OUT4HTCS utilises CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 100m (4K to 70m).  The PRO-OUT4HTCS also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 4x HDMI Type A, 19-pin, female, 4x HDBaseT™ RJ45 connector
  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

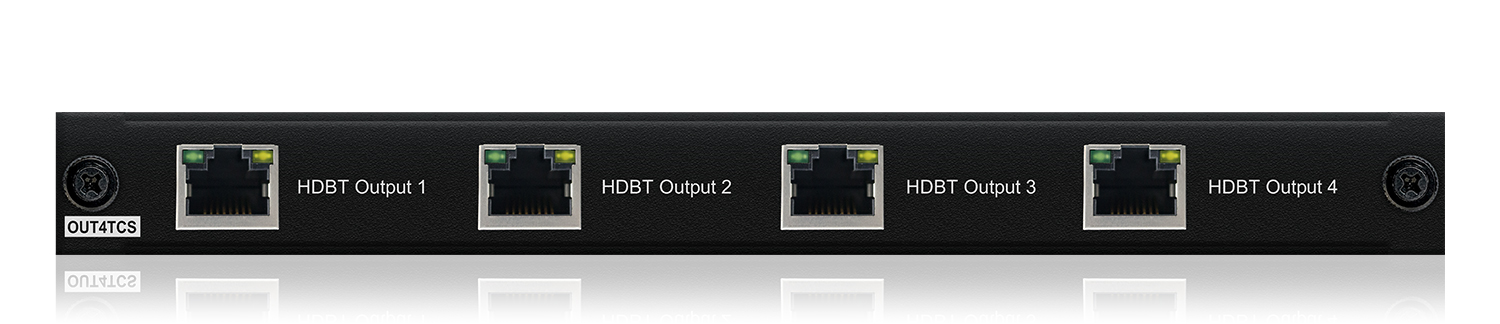

PRO-OUT4TCS
4-Way HDBaseT™ CSC Output Board - 4K HDR up to 70m


Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Features 4x HDBaseT™ outputs for connection to compatible HDBaseT™ receivers
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
  • Supports 4K 60Hz 4:4:4 UHD video up to 70m*
  • Extends HDMI 1080p video up to 100m
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Supports PoH (PoE) to power Blustream HDBaseT™ Receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP2.2 Support
  • To be used with the HEX100CS-RX receivers

*For HDMI 2.0 18Gbps video distribution the PRO-OUT4TCS must be used with a HDMI 2.0 18Gbps Custom Pro input board

Description

The PRO-OUT4TCS output board offers 4x independent HDBaseT™ outputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 100m (4K to 70m).  The PRO-OUT4TCS also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 4x HDBaseT™ RJ45 connector
  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

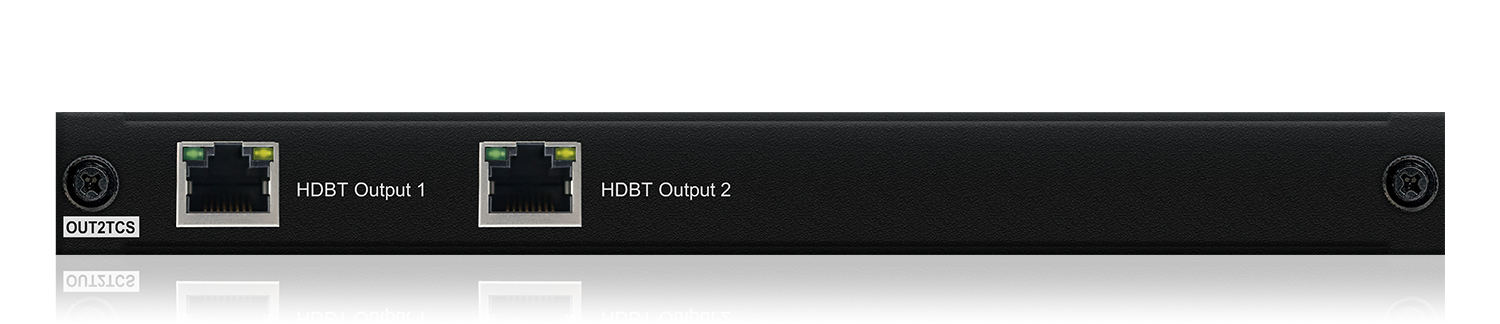

PRO-OUT2TCS
2-Way HDBaseT™ CSC Output Board - 4K HDR up to 70m


Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Features 2x HDBaseT™ outputs for connection to compatible HDBaseT™ receivers
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
  • Supports 4K 60Hz 4:4:4 UHD video up to 70m*
  • Extends HDMI 1080p video up to 100m
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Supports PoH (PoE) to power Blustream HDBaseT™ Receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 Support
  • To be used with the HEX100CS-RX receivers

*For HDMI 2.0 18Gbps video distribution the PRO-OUT2TCS must be used with a HDMI 2.0 18Gbps Custom Pro input board

Description

The PRO-OUT2TCS output board offers 2x independent HDBaseT™ outputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 100m (4K to 70m).  The PRO-OUT2TCS also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 2x HDBaseT™ RJ45 connector
  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

PRO-OUT4TL-V2
4-Way HDBaseT™ CSC Output Board - 4K HDR up to 40m


Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Features 4x HDBaseT™ outputs for connection to compatible HDBaseT™ receivers
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m*
  • Extends HDMI 1080p video up to 70m
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Supports PoH (PoE) to power Blustream HDBaseT™ Receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP2.2 Support
  • To be used with the HEX70CS-RX receivers

*For HDMI 2.0 18Gbps video distribution the PRO-OUT4TL-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board



Description

The PRO-OUT4TL-V2 output board offers 4x independent HDBaseT™ outputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 70m (4K to 40m).  The PRO-OUT4TL-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 4x HDBaseT™ RJ45 connector
  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

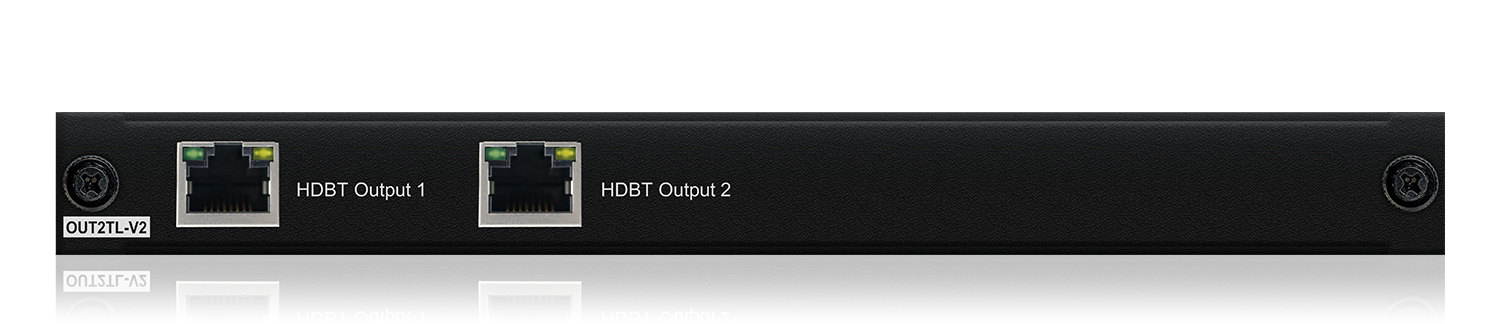

PRO-OUT2TL-V2
2-Way HDBaseT™ CSC Output Board - 4K HDR up to 40m


Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Features 2x HDBaseT™ outputs for connection to compatible HDBaseT™ receivers
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m*
  • Extends HDMI 1080p video up to 70m
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Supports PoH (PoE) to power Blustream HDBaseT™ Receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP2.2 Support
  • To be used with the HEX70CS-RX receivers

*For HDMI 2.0 18Gbps video distribution the PRO-OUT2TL-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board

Description

The PRO-OUT2TL-V2 output board offers 2x independent HDBaseT™ outputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 70m (4K to 40m).  The PRO-OUT2TL-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 2x HDBaseT™ RJ45 connector
  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

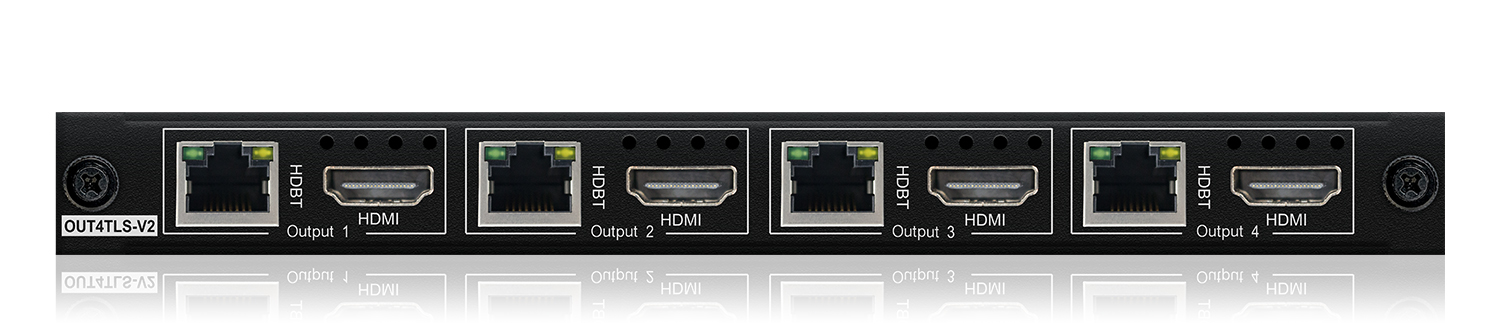

PRO-OUT4TLS-V2
4-Way HDMI/HDBaseT™ CSC Output Board - 4K HDR up to 40m


Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Features 4x simultaneous HDMI/HDBaseT™ outputs for connection to HDMI displays and HDBaseT™ receivers
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m*
  • Extends HDMI 1080p video up to 70m
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Supports PoH (PoE) to power Blustream HDBaseT™ Receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP2.2 Support
  • To be used with the HEX70CS-RX receivers

*For HDMI 2.0 18Gbps video distribution the PRO-OUT4TLS-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board

Description

The PRO-OUT4TLS-V2 output board offers 4x dual HDBaseT™ outputs  for connection to a HDBaseT™ receiver and HDMI display per zone. The PRO-OUT4TLS-V2 utilises CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 70m (4K to 40m).  The PRO-OUT4TLS-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 4x HDMI Type A, 19-pin, female, 4x HDBaseT™ RJ45 connector
  • Card Dimensions (W x H x D):182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

NEW - 4K HDMI 2.0 Output Boards

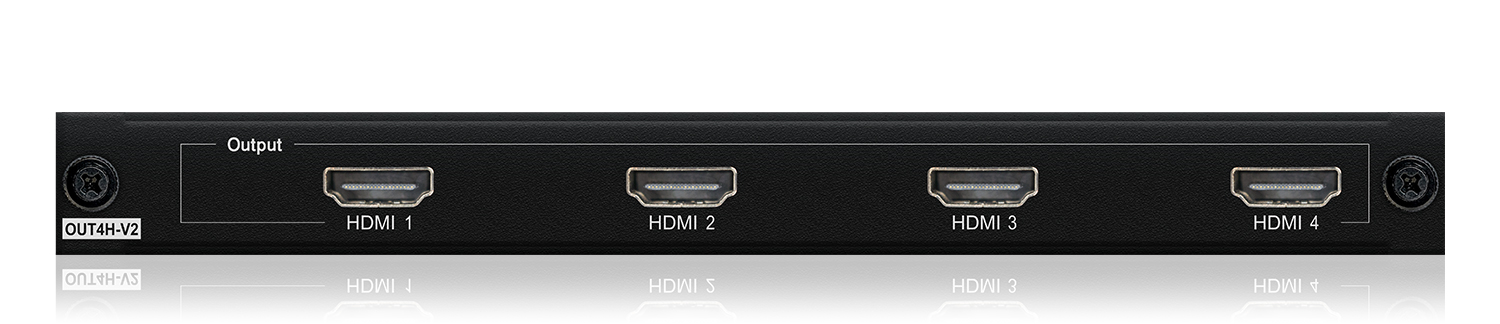

PRO-OUT4H-V2
 4-Way HDMI 2.0 Output Board - 18Gbps


Key Features

  • Features 4x HDMI outputs for connection to HDMI displays
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4*
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 Support

*For HDMI 2.0 18Gbps video distribution the PRO-OUT4H-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board

Description

The PRO-OUT4H-V2 supports HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDCP 2.2, allowing distribution of inputs to four independent displays. The PRO-OUT4H-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 4x HDMI Type A, 19-pin, female
  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

PRO-OUT2H-V2
2-Way HDMI 2.0 Output Board - 18Gbps


Key Features

  • Features 2x HDMI outputs for connection to HDMI displays
  • Supports HDMI 2.0 18 Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4*
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP2.2 Support

*For HDMI 2.0 18Gbps video distribution the PRO-OUT2H-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board

Description

The PRO-OUT2H-V2 supports HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDCP 2.2, allowing distribution of inputs to two independent displays. The PRO-OUT2H-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 2x HDMI Type A, 19-pin, female
  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

Custom Pro 4K - Control Boards

PRO-8IR
Bi-Directional IR Control Board

Key Features

  • 8x 5V IR outputs for routed control of local source equipment
  • 8x 5V IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Description

The PRO-8IR IR routing board offers 8x IR outputs for routed control of local source hardware and 8x IR inputs for distribution of IR to compatible HDBaseT™ receivers. The PRO-8IR also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • IR Input ports: 9x 5V 3.5mm stereo jack
  • IR Output ports: 9x 5V 3.5mm mono jack
  • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

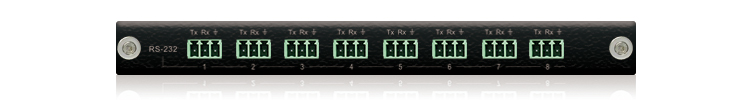

PRO-8RS232
8 Port Bi-Directional RS-232 Control Board

Key Features

  • Features 8x Bi-directional RS-232 ports for serial communication to corresponding Blustream HDBaseT™ zone receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Description

The PRO-8RS232 RS-232 routing board offers 8x bi-directional RS-232 ports for serial communication from all input and output locations when used with compatible Blustream HDBaseT™ transmitters & receivers. The PRO-8RS232 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • RS-232 serial ports: 8x 3-Pin Phoenix connector
  • Card Dimensions (W x H x D): 190mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

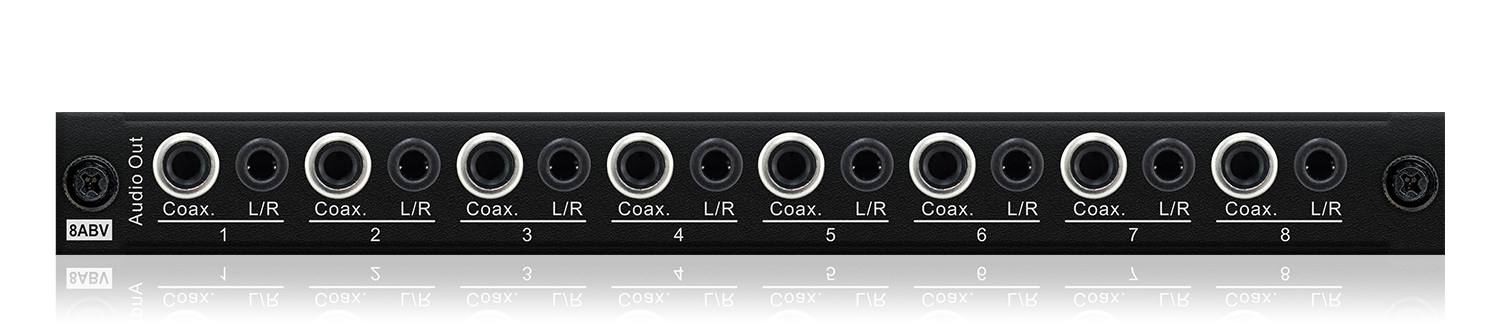

PRO-8ABV
8 Dual Output Audio Breakout Board With Variable Line-Level Control


Key Features

  • Features 8x HDMI audio breakouts from corresponding video zone outputs to coaxial digital and analogue L/R audio outputs
  • Analogue audio outputs include variable line-level control (supports 2ch PCM)
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Description

The PRO-8ABV audio breakout board offers 8x simultaneous coaxial digital and variable line-level analogue L/R audio outputs and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Audio Output Connectors: 8x RCA (SPDIF), 8x Analogue Left/Right audio (3.5mm stereo jack)
  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

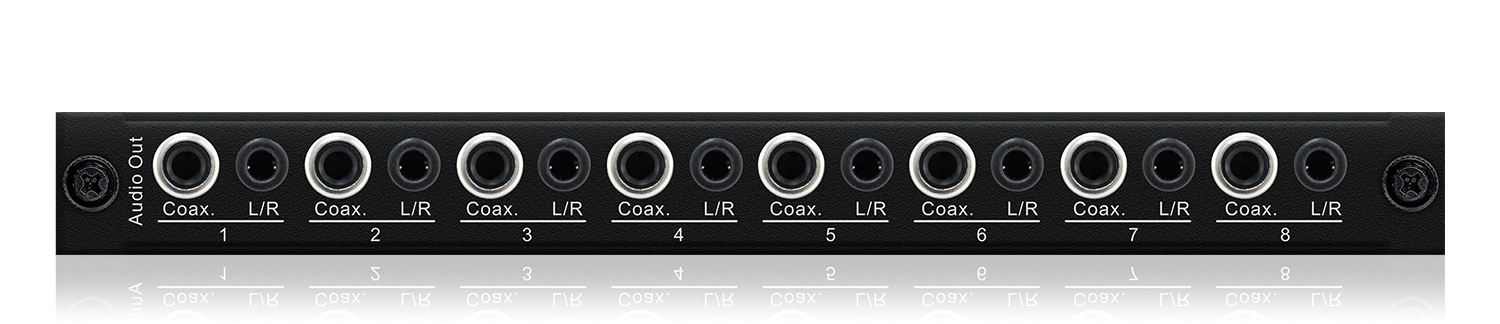

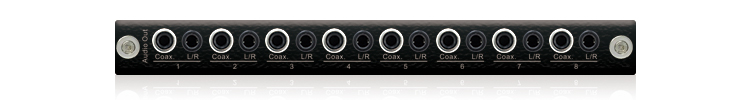

PRO-8AB
8 Dual Output Audio Breakout Board

Key Features

  • Features 8x HDMI audio breakouts from corresponding video zone outputs to coaxial digital and analogue L/R audio outputs (no DSP)
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Description

The PRO-8AB audio breakout board offers 8x simultaneous coaxial digital and analogue L/R audio outputs and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Audio Output Connectors: 8x RCA (SPDIF), 8x 3.5mm stereo jack (L/R)
  • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

The PRO88HBT70 is a configured 4K HDCP 2.2 compliant 8x8 HDBaseT matrix, transmitting HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m @ 1080p over a single CAT cable. The matrix also provides advanced features including audio breakout, simultaneous HDMI outputs and RS-232 pass through to enable seamless 3rd party control integration.


The PRO48HBT70 is a configured 4K HDCP 2.2 compliant 4x8 HDBaseT matrix, transmitting HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m @ 1080p over a single CAT cable. The matrix also provides advanced audio breakout features.  The Custom Pro Matrix has been specifically designed to operate in challenging AV environments.


PRO88HDMI
Pro 8x8 HDMI Matrix - 2-Way IR and Audio Breakout

The PRO88HDMI is a configured 4K HDCP 2.2 compliant 8x8 HDMI matrix. The matrix also provides advanced audio breakout features. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments.
