Custom Pro 4K - Input Boards

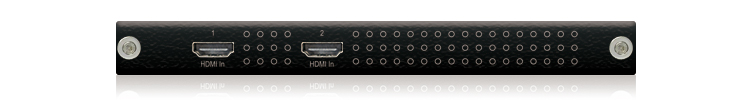

PRO-IN2H
2 Input HDMI Board

Key Features

  • Features 2x HDMI inputs which can be independently routed to video output cards
  • Supports up to 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 compliant

Description

The PRO-IN2H input board offers 2x HDMI sources that can be independently routed to any HDMI / HDBaseT output board and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Input Connectors: 2x HDMI Type A, 19-pin, female
  • Card Dimensions (W x H x D): 190mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

PRO-IN4H
4 Input HDMI Board

Key Features

  • Features 4x HDMI inputs which can be independently routed to video output cards
  • Supports up to 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 compliant



Description

The PRO-IN4H input board offers 4x HDMI sources that can be independently routed to any HDMI/HDBaseT output board and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Card Dimensions (W x H x D): 190mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

Custom Pro 4K - Output Boards

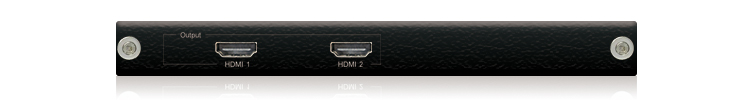

PRO-OUT2H
2 Output HDMI Board

Key Features

  • Features 2x HDMI outputs for connection to HDMI displays / AVR's
  • Supports up to 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDMI v1.4
  • HDCP 2.2 compliant

Description

The PRO-OUT2H output board offers 2x independent HDMI outputs for connection to HDMI display devices / AVR's and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 2x HDMI Type A, 19-pin, female
  • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

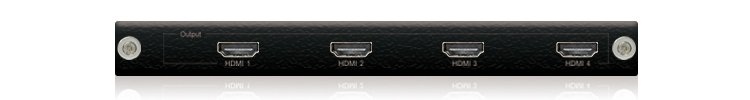

PRO-OUT4H
4 Output HDMI Board

Key Features

  • Features 4x HDMI outputs for connection to HDMI displays / AVR's
  • Supports up to 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDMI v1.4
  • HDCP 2.2 compliant

Description

The PRO-OUT4H output board offers 4x independent HDMI outputs for connection to HDMI display devices / AVR's and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 4x HDMI Type A, 19-pin, female
  • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

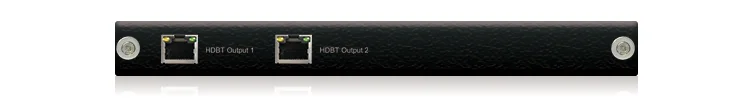

PRO-OUT2TL
2 Output HDBaseT™ Lite Board (70m @ 1080p)

Key Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Features 2x HDBaseT outputs for connection to compatible Blustream HDBaseT™ receivers
  • Extends 1080p HDMI up to a distance of 70m over single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 compliant
  • To be used with the HEX70B-RX or HEX70ED-RX receivers

Description

The PRO-OUT2TL output board offers 2x independent HDBaseT™ Lite outputs for connection to HDBaseT™ receiver devices and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 2x HDBaseT™ RJ45 connector
  • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

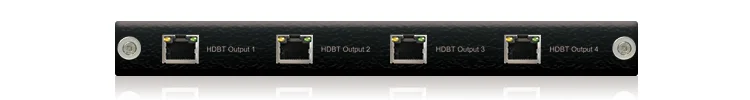

PRO-OUT4TL
4 Output HDBaseT™ Lite Board (70m @ 1080p)

Key Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Features 4x HDBaseT outputs for connection to compatible Blustream HDBaseT™ receivers
  • Extends 1080p HDMI up to a distance of 70m over single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 compliant
  • To be used with the HEX70B-RX or HEX70ED-RX receivers

Description

The PRO-OUT4TL output board offers 4x independent HDBaseT™ Lite outputs for connection to HDBaseT™ receiver devices and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 4x HDBaseT™ RJ45 connector
  • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

PRO-OUT4TLS
4 Dual Outputs HDMI/HDBaseT™ Lite Board (70m @ 1080p)



Key Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Features 4x simultaneous HDMI / HDBaseT™ outputs for connection to HDMI displays / AVR's and compatible Blustream HDBaseT™ receivers
  • Extends 1080p HDMI up to a distance of 70m over single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 compliant
  • To be used with the HEX70B-RX or HEX70ED-RX receivers

Description

The PRO-OUT4TLS output board offers 4x dual HDMI / HDBaseT™outputs for connection to a HDBaseT™ receiver and HDMI display per zone. The PRO-OUT4TLS also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Video Output Connectors: 4x HDMI Type A, 19-pin, female, 4x HDBaseT™ RJ45 connector
  • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

Custom Pro 4K - Control Boards

PRO-8IR
Bi-Directional IR Control Board

Key Features

  • 8x 5V IR outputs for routed control of local source equipment
  • 8x 5V IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Description

The PRO-8IR IR routing board offers 8x IR outputs for routed control of local source hardware and 8x IR inputs for distribution of IR to compatible HDBaseT™ receivers. The PRO-8IR also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • IR Input ports: 9x 5V 3.5mm stereo jack
  • IR Output ports: 9x 5V 3.5mm mono jack
  • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

PRO-8RS232
8 Port Bi-Directional RS-232 Control Board

Key Features

  • Features 8x Bi-directional RS-232 ports for serial communication to corresponding Blustream HDBaseT™ zone receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Description

The PRO-8RS232 RS-232 routing board offers 8x bi-directional RS-232 ports for serial communication from all input and output locations when used with compatible Blustream HDBaseT™ transmitters & receivers. The PRO-8RS232 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • RS-232 serial ports: 8x 3-Pin Phoenix connector
  • Card Dimensions (W x H x D): 190mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

PRO-8AB
8 Dual Output Audio Breakout Board

Key Features

  • Features 8x HDMI audio breakouts from corresponding video zone outputs to coaxial digital and analogue L/R audio outputs (no DSP)
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Description

The PRO-8AB audio breakout board offers 8x simultaneous coaxial digital and analogue L/R audio outputs and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Specifications

  • Audio Output Connectors: 8x RCA (SPDIF), 8x 3.5mm stereo jack (L/R)
  • Card Dimensions (W x H x D): 202mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
