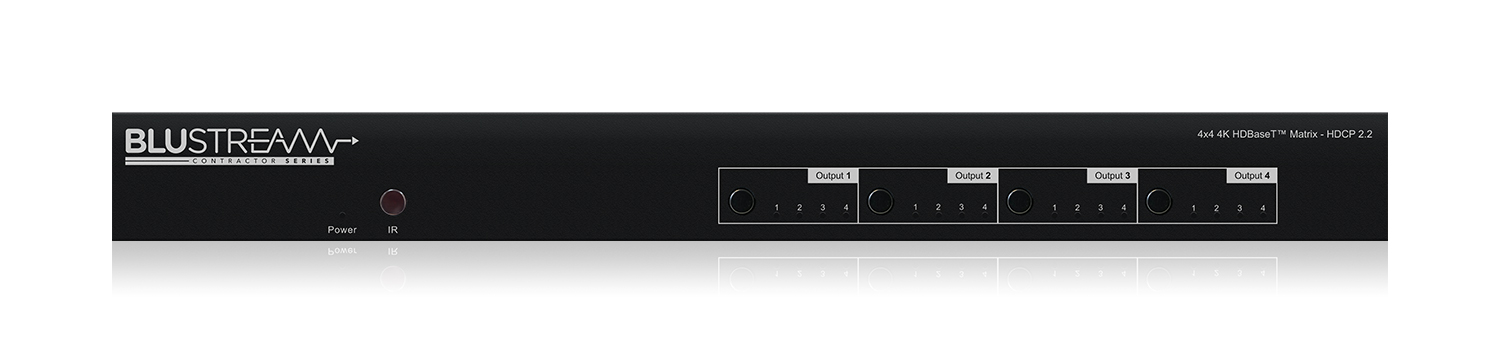

C44-KIT
Contractor 4x4 HDBaseT™ Matrix Kit - 70m (4K up to 40m), Bi-directional IR, PoH (PoE), Simultaneous HDMI / HDBaseT™ on output 1,  RS-232 & TCP / IP Control, HDCP 2.2 compliant, WEB GUI, Includes 4x HEX70B-RX HDBaseT™ Receivers

Description

Our Contractor 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The C44-KIT is a 4K HDCP 2.2 Matrix package, delivering  HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable. The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1 and a web browser interface module for control and configuration of the matrix. The C44-KIT is supplied with 4 x HEX70B Receivers.

Box Content

1 x C44

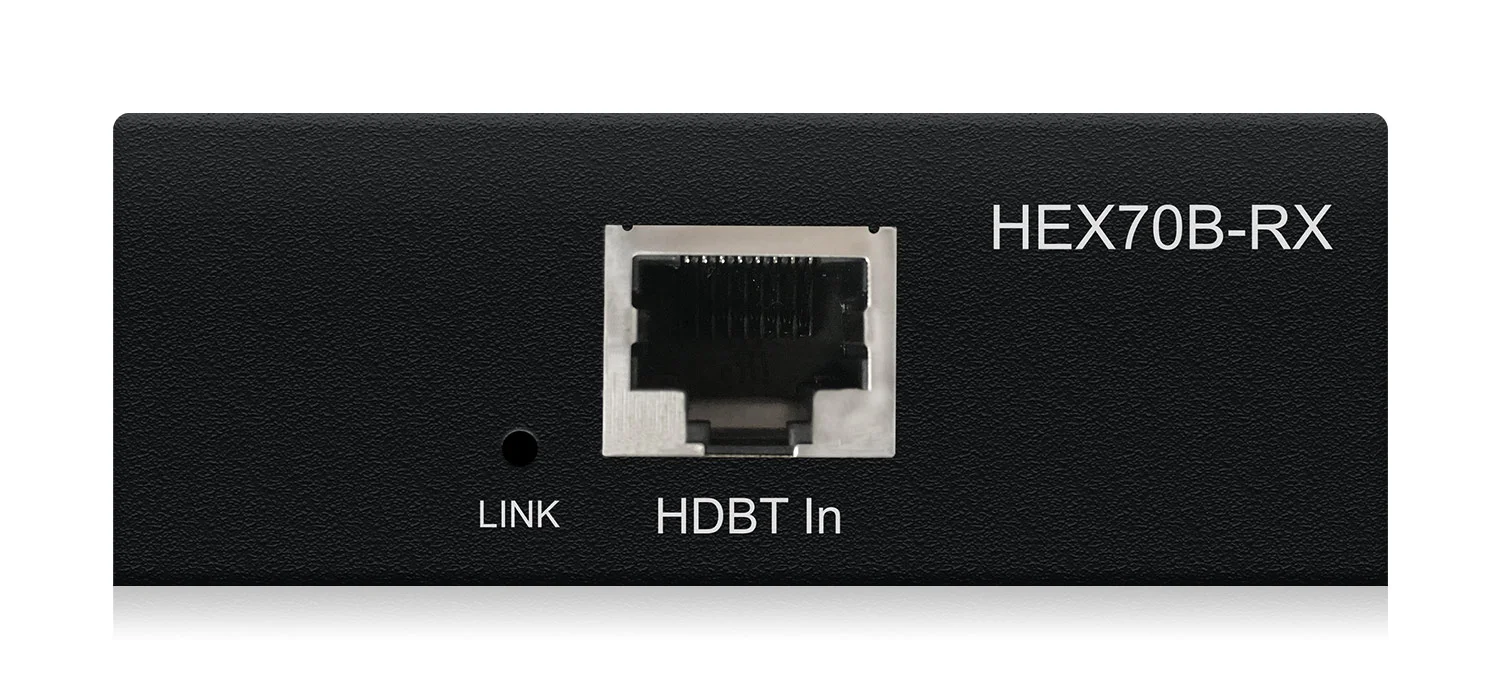

4 x HEX70B-RX
1 x Rack mounting kit
4 x Mounting kit for HEX70B-RX
1 x 24V/3.5A power supply
1 x Remote control
4 x IR emitters
5 x IR receivers
1 x Quick Reference Guide





Key Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Features 4x HDMI inputs which can be independently routed to 4x HDBaseT™ outputs
  • Output 1 features simultaneous HDMI and HDBaseT™ output
  • Extends HDMI  up to a distance of 70m over single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of Matrix
  • Supports bi-directional IR on all HDBaseT outputs
  • Supplied with Blustream IR receivers and emitters
  • Control via front panel , IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
  • 3rd Party drivers available for all major home control brands
  • 1U Design for 19" rack mount integration - Mounting kit included
  • Advanced EDID management
  • HDCP 2.2 compliant
  • Supplied with 4x HEX70B-RX

Specification

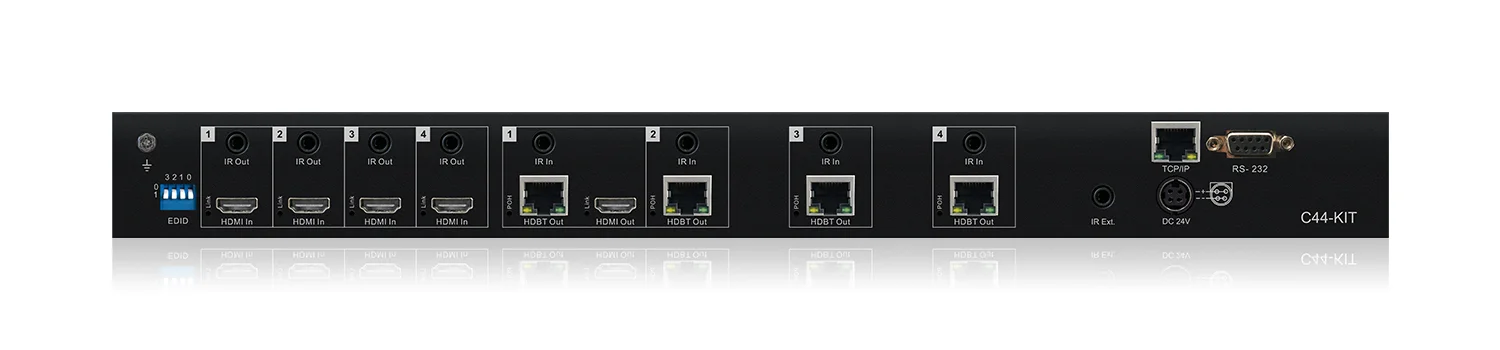

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1x HDMI Type A, 19-pin, female, 4x HDBaseT™ RJ45 connector
  • RS-232 serial port: 1x DB-9, female
  • TCP/IP Control: 1x RJ45, female
  • IR Input ports: 5x 3.5mm stereo jack
  • IR Output ports: 4x 3.5mm mono jack
  • Rack-Mountable: 1 U rack height, rack ears included
  • Case Dimensions (without feet) (W x D x H): 440mm x 202mm x 44mm
  • Dimensions (W x D x H): 440mm x 212mm x 52mm
  • Shipping Weight: 2.7kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 1x 24V/3.5A DC
