Introducing AI 2.0 - The latest advanced integration software for Blustream Multicast


Multicast UHD from Blustream delivers virtually latency free distribution of HDMI video over a 1GB Network switch. Using lossless compression technology, Multicast delivers HDMI, IR and RS-232 up to lengths of 100m over a single CAT cable. Its flexibility and versatility makes it the perfect choice for a range of AV installations.

Launching today, the latest Advanced Integration software (AI 2.0) promises to deliver pioneering new features for our Multicast Video over IP platform.

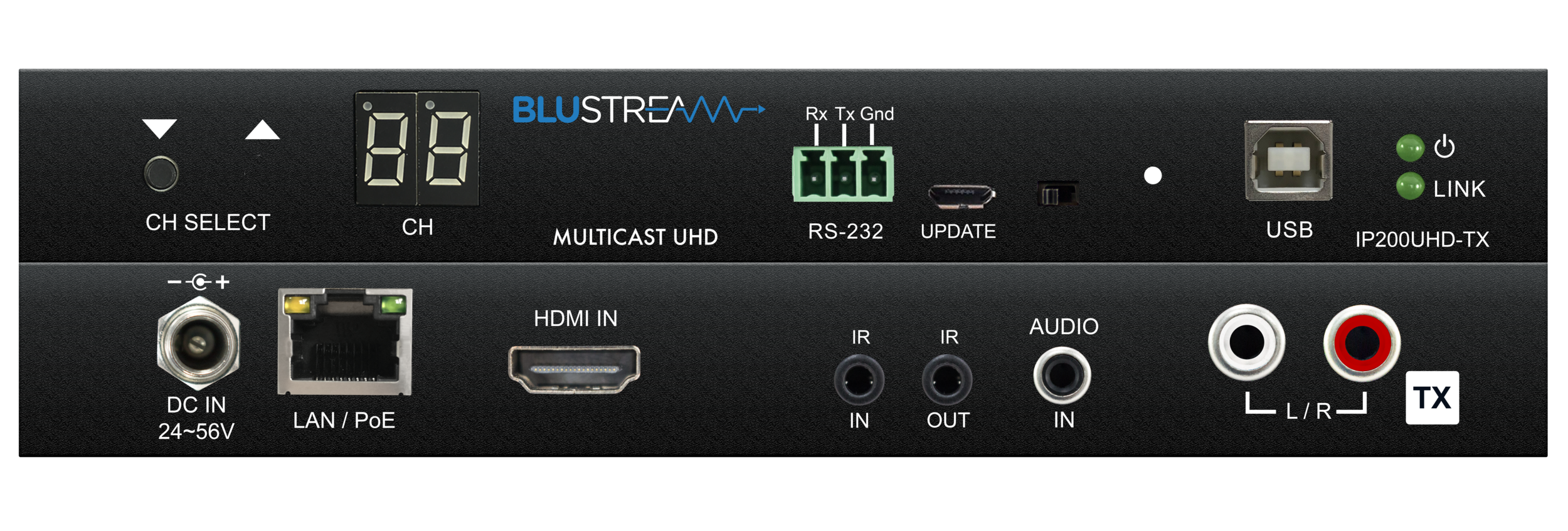

IP200UHD TX

The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture. The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE.

Key Features

Advanced UHD video over 1GB Network
Extends HDMI up to a distance of 100m over a single CAT cable
Supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio transmission
NEW - Analogue L/R audio breakout
NEW - Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
NEW - USB port for USB/KVM routing
PoE (Power over Ethernet) to power Blustream products from PoE switch
HDCP 2.2 compliant with advanced EDID management
Analogue L/R audio embedding


IP200UHD RX

The IP200UHD-RX is an industry leading 4K HDCP 2.2 HDMI video scaling receiver that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture. The IP200UHD-RX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.

Key Features

Advanced 4K UHD video over 1GB Network
Extends HDMI up to a distance of 100m over a single CAT cable
Video scaling for integration of legacy displays
Supports up to 4K 30Hz UHD video output
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio transmission
NEW - Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
NEW - USB port for USB/KVM routing
PoE (Power over Ethernet) to power Blustream products from PoE switch
HDCP 2.2 compliant with advanced EDID management
Analogue L/R audio breakout
LAN loop-out for one-to-many extender mode

Screen Shot 2018-10-23 at 16.49.56.png

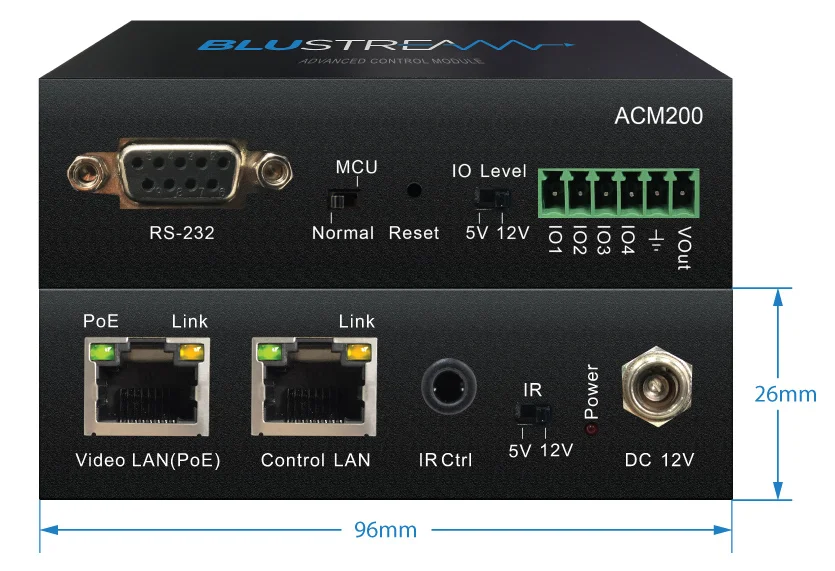

ACM200

The ACM200 Control Module allows advanced third party control of the Multicast system using TCP / IP, RS-232 and IR. The ACM200 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, Audio and Video.

Key Features

Web interface module for configuration and control of the Blustream Multicast system
NEW - Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
NEW - Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
NEW - Auto system configuration
2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independent IP address per LAN connection
- Allows simplified TCP / IP control of Multicast system
RS-232 integration for control of Multicast system
IR integration for control of Multicast system
PoE (Power over Ethernet) to power Blustream product from PoE switch
Local 12V power supply (optional) should Ethernet switch not support PoE
Support for IOS and Android App control
3rd Party drivers available for all major home control brands
