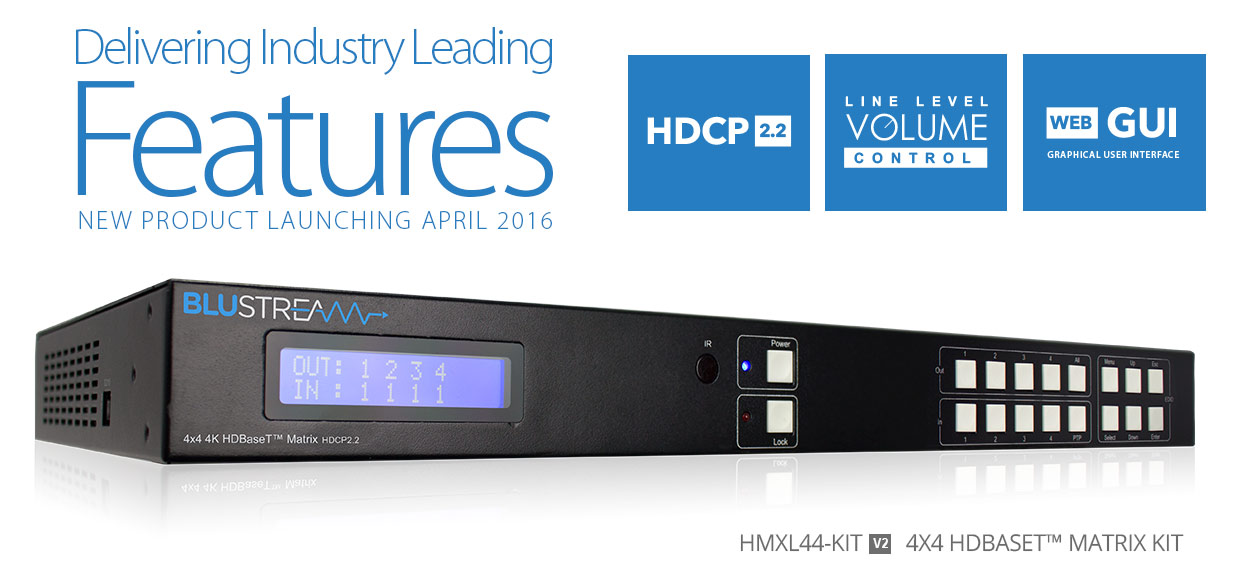

Discover the new HMXL44-V2 - HDCP2.2, Web GUI and Line Level Volume Control

4x4 HDBaseT™ Matrix Kit - 70m (4K up to 40m), Bi-directional IR & RS-232, PoH (PoE),
Simultaneous HDMI + HDBaseT™ Outputs, Audio Breakout with pre-amp variable line-level
control, RS-232 & TCP/IP Control, HDCP 2.2 compliant, Includes 4x HDBaseT™ receivers

Our Essential 4x4 HDBaseT Matrix offers unprecidented performance and value for the custom installation market. The HMXL44-KIT is a 4K HDCP 2.2 matrix package, delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable. The matrix also provides advanced features including Audio breakout with pre-amp variable line-level control, simultanious HDBaseT/HDMI outputs, RS-232 pass through to enable 3rd party control of displays and a web browser interface module for control and configuration of the matrix. The HMXL44-KIT is supplied with 4 x HEX70ED Receivers.

▪ Advanced HDBaseT technology offering uncompressed video and audio with zero latency
▪ Features 4x HDMI inputs which can be independantly routed to 4x HDBaseT/HDMI outputs
▪ Simultanious HDBaseT and HDMI outputs to allow connection to dual displays per zone
▪ HDMI audio breakout to associated analogue L/R audio outputs with pre-amp line level control
▪ Extends HDMI up to a distance of 70m over single CAT cable
▪ Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
▪ Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
▪ Supports 3D signal display
▪ Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
▪ Web interface module for control and configuration of Matrix
▪ Bi-directional IR from all input and output locations
▪ Bi-directional RS-232 from all input and output locations
▪ Supplied with Blustream IR receivers and emitters
▪ Control via front panel , IR, RS-232 and TCP/IP
▪ Supports PoH (Power over HDBaseT) to power compatible HDBaseT receivers
▪ 3rd Party drivers available for all major home control brands
▪ Advanced EDID management
▪ HDCP 2.2 compliant
▪ Matrix kit is supplied with 4 x HEX70ED-RX HDBaseT receivers
